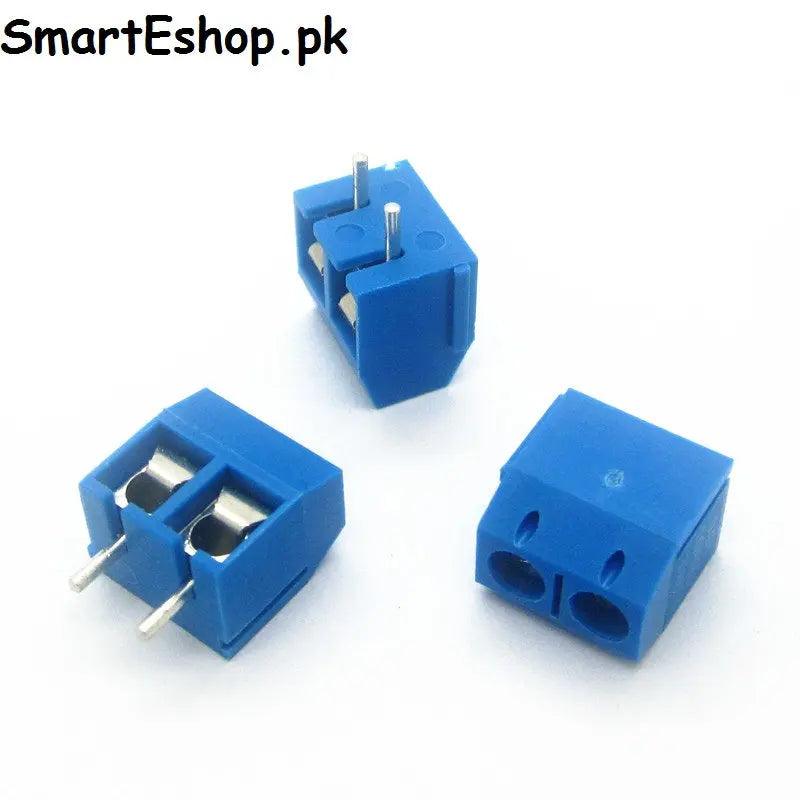

1 PCS 2 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch (Blue) My Store

1 PCS 2 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch (Blue)

Rs.30.00 Rs.10.00 SAVE 67%
SKU: 2 PIN SCREW TERMINAL
Availability: In Stock Pre order Out of stock
Categories: Shop
Tags: Connectors
Description
 2 Pin Screw PCB Terminal Block Connector 5mm Pitch
MATERIAL
Pitch:5.0mm
Poles: 2P
Screw: M2.5 Steel Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
ELECTRICAL
Rated current: 16A
Withstanding voltage: AC200V/1Min
MECHANICAL
Temp range: -30~+120 Celsius
MAX Soldering: +150 Celsius for 5sec
Torque: 0.4 Nm (3.5lb.in)
Strip length: 4.5-5mm
For AWG 22-14
MAX 2.5MM2

PACKAGE INCLUDED:

1PC 2PIN SCREW TERMINAL BLOCK CONNECTOR 5.08MM
