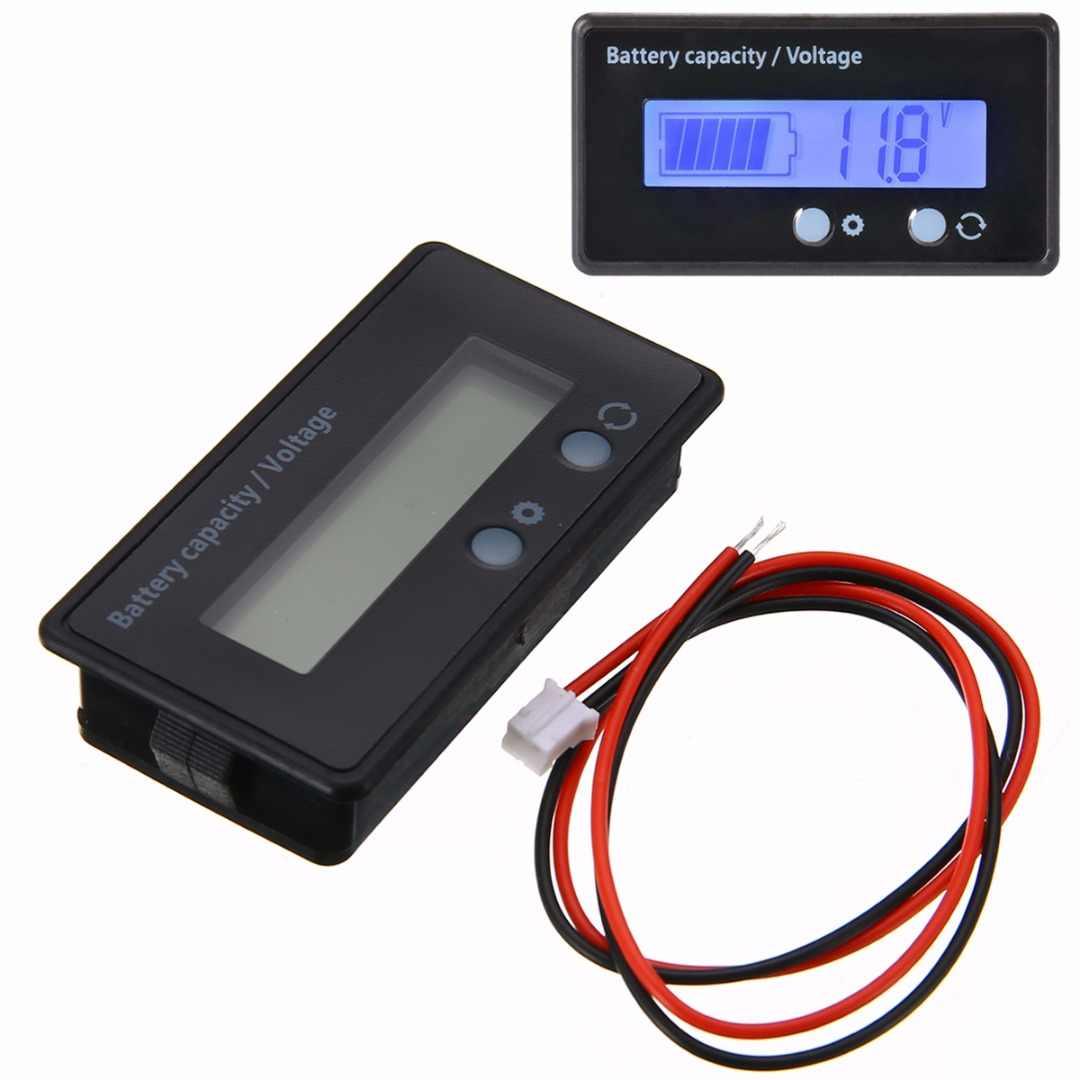

1pc 12V 24V 36V 48V LCD Acid Lead Lithium Battery Capacity Indicator Voltage Tester Digital Voltmeter Blue

Rs.1,500.00 Rs.1,199.00

Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU: Battery Capacity Tester
Availability: In Stock Pre order Out of stock
Description

1pc 12V 24V 36V 48V LCD Acid Lead Lithium Battery Capacity Indicator Voltage Tester Digital Voltmeter Blue

HW0001690

https://www.youtube.com/watch?v=Bc-dXGsnCAc&ab_channel=MrEngineer

Specification:

  • Brand new
  • Cable length: approx. 300mm
  • Display: Power, Voltage, Close, the key for cycle.
  • Voltage Range: 6-63V, products will display based on the voltage value, voltage fluctuations, power meter will be follow as the voltage fluctuation. (Comes with reverse polarity protection, can be guarantee use effectively )
  • LCD display, easy to read.
  • Easy to use.
  • Stable and durable.
  • Suitable for lead-acid 12V, 24V, 36V, 48V (can be changes via key)
  • Suitable for 3.7V lithium series multi-platform, 3 string, 4 string, 5 string, 6 string, 7 string 8 string, 9 string, 10 string, 11 string, 12 string, 13 string, 14 string and 15 string.



Instructions:

  • 1. Press and hold switch on the product, power on, automatically select the interface (please follow as the code corresponds blow).
  • 2. Select your battery type after corresponding, for example 3 series lithium battery, you need to enter the selection screen, press the key point to for L3 interface, then off, re-energized, choose success, such as the need to set 12V lead-acid batteries, the key point press to P12V interface, power, re-energized, both choose success.
  • 3. Instruments can be used if you Select successful.  Meter shows the power interface, tap switch, switch to voltage interface, click the switch, turn off the meter. cycle shown as the code corresponds.



Code: Suitable for

  • L3: 3 string lithium
  • L4: 4 string lithium
  • L5: 5 string lithium
  • L6: 6 string lithium
  • L7: 7 string lithium
  • L8: 8 string lithium
  • L9: 9 string lithium
  • L10: 10 string lithium
  • L11: 11 string lithium
  • L12: 12 string lithium
  • L13: 13 string lithium
  • L14: 14 string lithium
  • P12V: 12V lead-acid
  • P24V: 24V lead-acid
  • P36V: 36V lead-acid
  • P48V: 48V lead-acid





Package included:

  • 1 x 12V Battery Capacity & Voltage Tester
  • 1 x Cable



Note:

  • Please allow 1-5mm errors due to manual measurement.
  • Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
  • This Product Available in Blue Colour.
