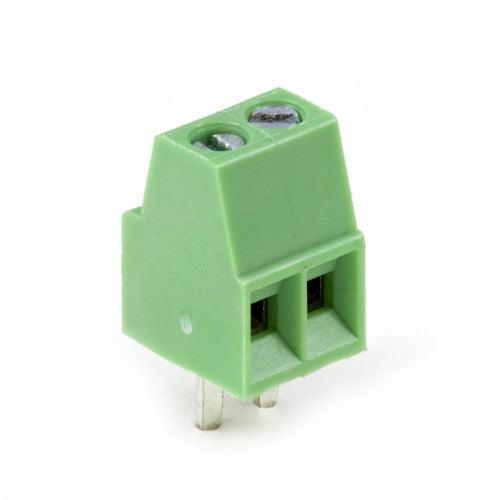

2 Pin PCB Mount Terminal Block (Green Colour)
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
This 2 Pin Wire to Board connector are used widely for connecting Wires to Boards, it can be for Power Supply or connecting any other peripheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 2.54 mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 10 A.
Pin Diameter : 1mm
Color : Green
No of Pins : 2
Current Rating : 10A
Material : PA66 plastic + steel + copper
Rated voltage : 300V
Rated current : 10A
Withstanding voltage : AC 2000V/1Min
Wire range : 18-12AWG
Torque : 0.5Nm
Strip length : 6~7mm
Temperature : -40~105ºC
Dimensions : 0.67 in x 0.43 in x 0.31 in (1.7 cm x 1.1 cm x 0.8 cm)
