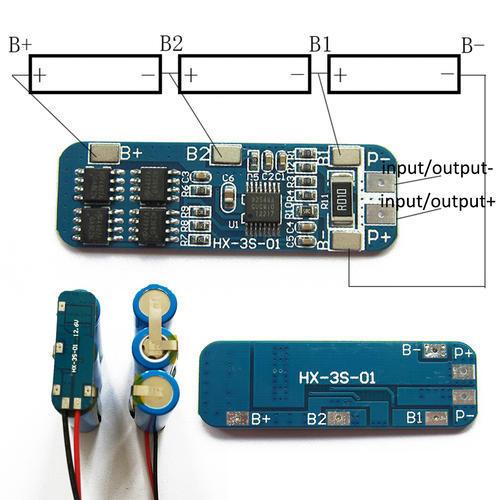

3S BMS 11.1V 3S 10A BMS Battery Management System, for massager battery pack and 12V li-ion
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Product Description
3 Series 18650 battery 11.1V (Li-ion 18650 or li-ion battery rated voltage)12.6V
The lithium battery protection board is not included the welding tabs.BMS activate method : Use 12.6V Li-ion charger to charge
NOTE: this board not suit high power electronic tools, if use for screwdrier and drill.
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Parameter:
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:5-8A
Max peak current:9-10A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:6uA
Life cycle:more then 30000 hours
Resistance:Less than 60mΩ
Short Cut:Protectable,Charge can repair
Size:50*16*1.0mm
Application: Vacuum cleaner, massager battery pack, LED backup power supply, 12V li-ion electronics, solar power led etc..,
