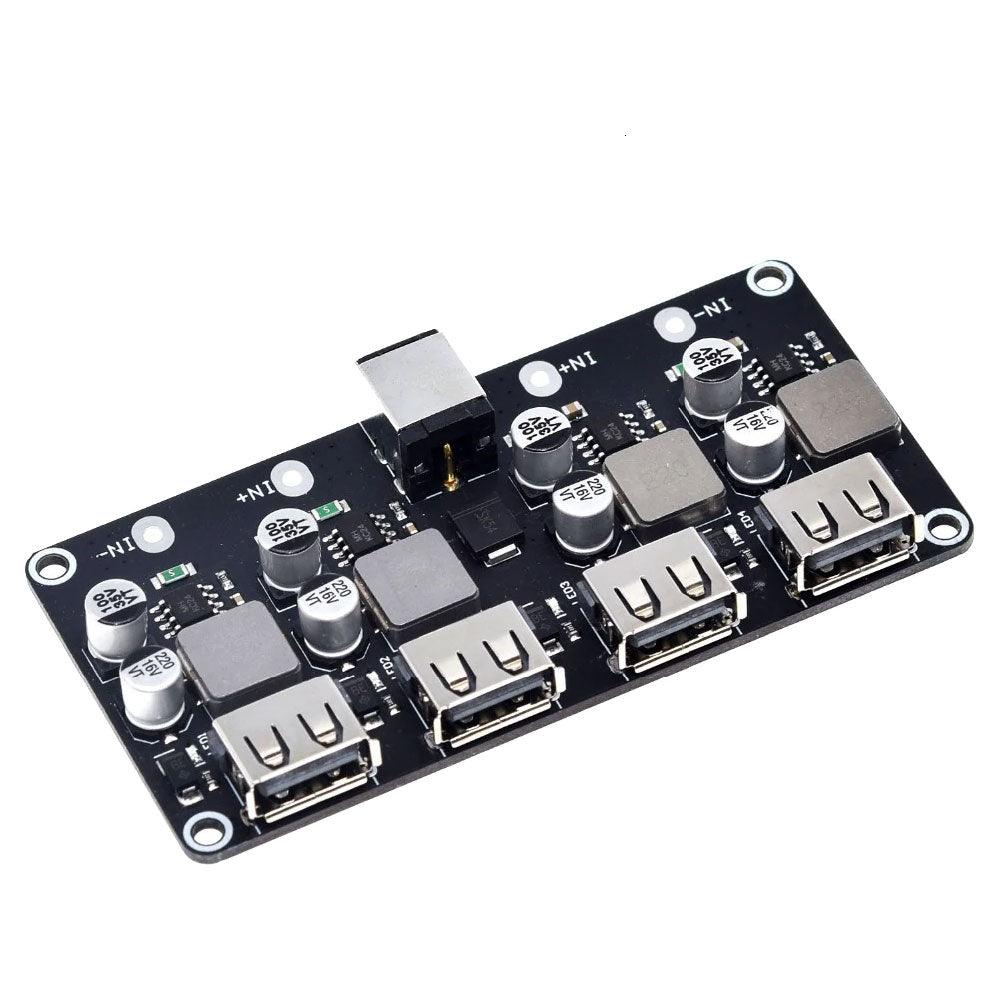

4Bit USB DC-DC Step Down Power Supply Module Buck QC2.0 QC3.0 Charger Module 24W 4-Channel Voltage Converter
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Description
4Bit USB DC-DC Step Down Power Supply Module Buck QC2.0 QC3.0 Charger Module 24W 4-Channel Voltage Converter
https://www.youtube.com/watch?v=07SBfVJMMv8
1.Description:
It is a DC-DC Step Down Power Supply Module Support Fast Charger Function.
2.Feature:
1>.Compatible with multiple fast charge modes
2>.Automatic identification to adapt to output current
3>.Four USB output
4>.Output overcurrent protection
5>.Input overvoltage protection
6>.Input undervoltage protection
7>.Output short circuit protection
3.Parameter:
1>.Work Voltage:DC 4.5V~32V
2>.Output Voltage:Default 5V(3V~12V after trigger fast charger)
3>.Rated Input Current:4A(MAX)
4>.Output Current:4V3.6A/5V3.4A/9V2.4A/12V2A
5>.Output Power:24W(Max)
6>.Work Frequency:220KHz
7>.Conversion efficiency:97%
8>.Fast Protocol:BC1.2/APPLE2.4A/SFCP/QC2.0/QC3.0/FCP/AFC/MTK PE+1.1/MTK PE+2.0
9>.Work Temperature:-25℃~85℃
10>.Work Humidity:5%~95%RH
11>.Size:90*45*13mm
4.Package:
1pcs 4CH USB DC-DC Step Down Power Supply Module
