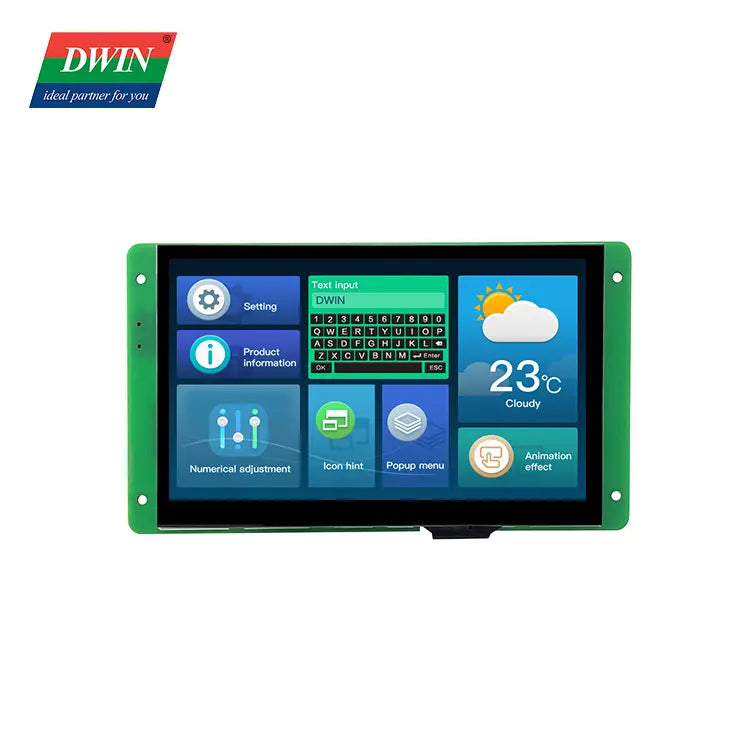

The 7 inch HMI LCD Touch Display is a Seamless Human Machine Interface (HMI) display module solution that provides a control and visualization interface for any Raspberry Pi and Arduino kits
DWIN 7 Inch HMI LCD Display Capacitive Touch Panel DMG80480C070_04W (Commercial grade) LCD Screen
Features:
- Based on T5L0, running DGUS II system, commercial grade.;
- 7.0-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD.
- No touch screen/Resistive touch screen/Capacitive touch screen Optional;
- TTL/RS232 interface; 10Pin_1.0mm connection wire;
- Download via SD card or on-line serial port;

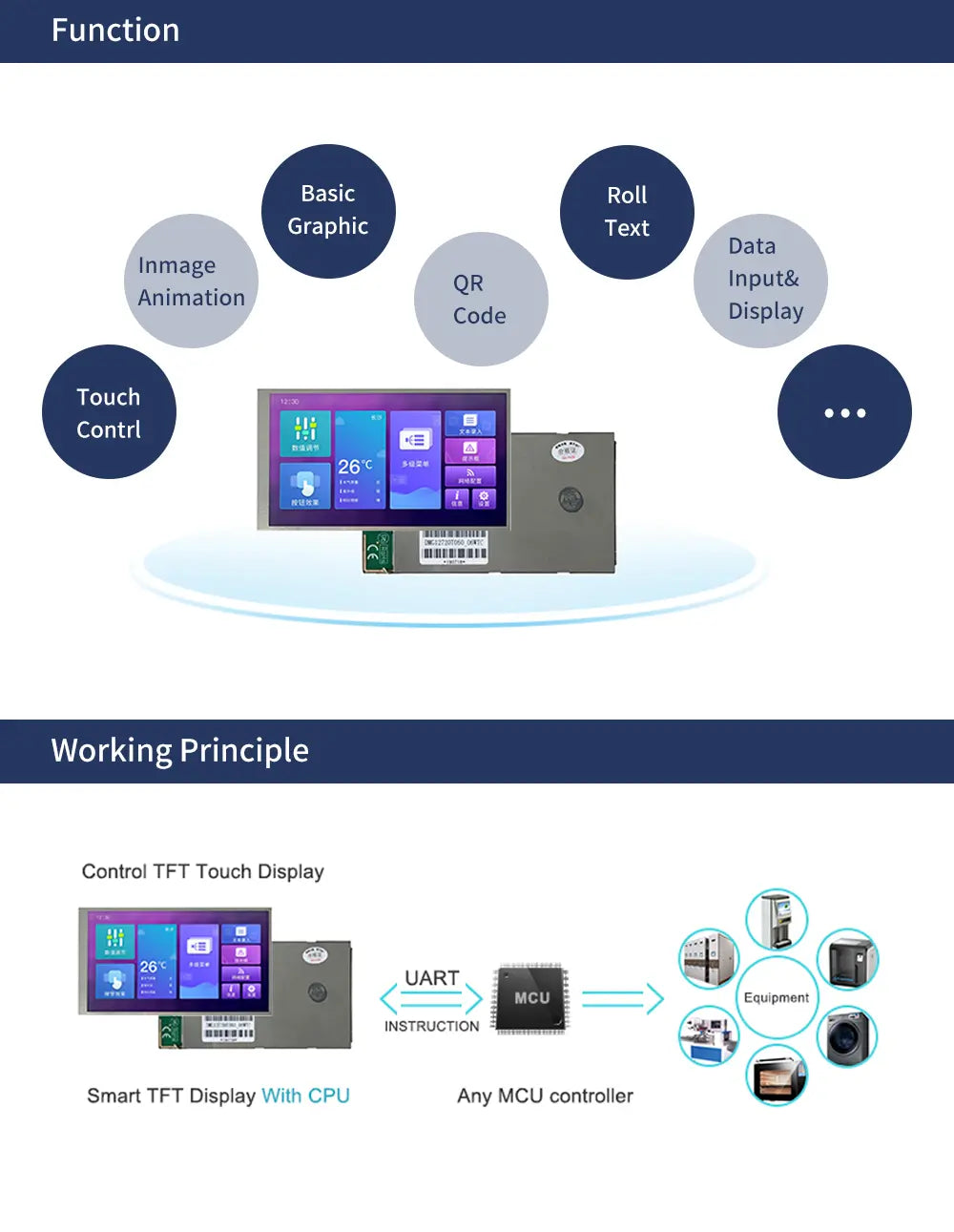

- Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
- Dual Development System: DGUS Ⅱ/TA(Instruction set);
- TV viewing angle, 70°/70°/40°/30° (L/R/U/D);
- With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development via DWIN OS language or KELI C51.
Package Includes:
1 x 7 inch HMI display screen

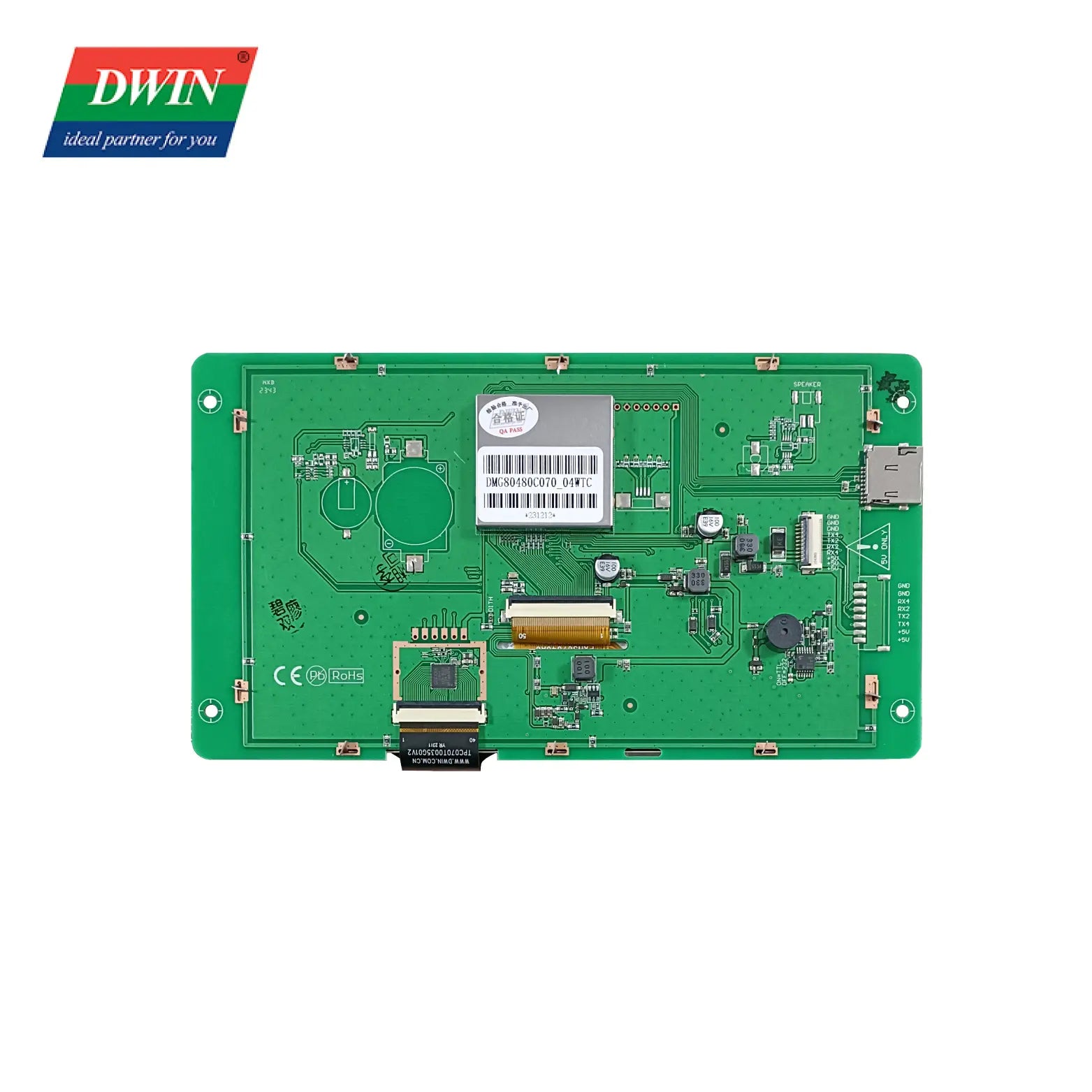

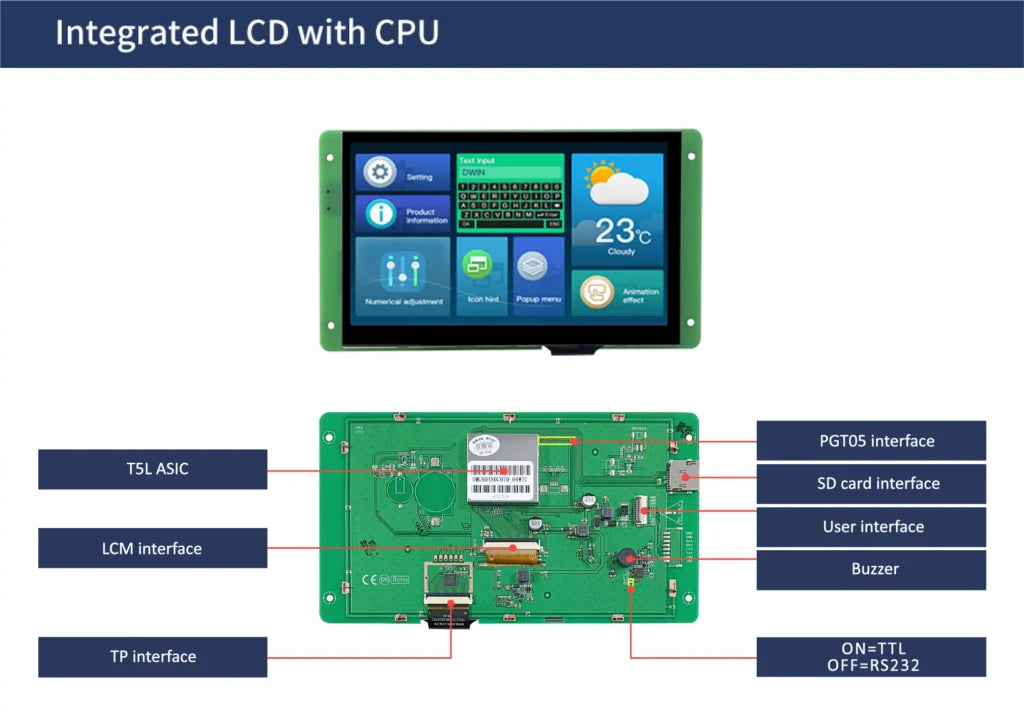

Hardware and interface description
- T5L0 ASIC: T5L0 ASIC Developed by DWIN. Mass production in 2020, 1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewritecycle: over 100,000 times
- LCM interface: FPC50_0.5mm, RGB interface
- TP interface: Capacitive touch: COB structure, IIC interface
- User interface: 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- Flash: 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
- Buzzer: 3V passive buzzer. Power: <1W
- SD card interface: FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
- PGT05 interface: When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
Display Parameters
- LCD Type: TV-TN, TFT LCD
- Viewing Angle: TV viewing angle, 70°/70°/40°/30°（L/R/U/D）
- Resolution: 800×480 pixels (support 0°/90°/180°/270°)
- Color: 18-bit 6R6G6B
- Active Area (A.A.): 154.08mm (W)×85.92mm (H)
- Backlight Mode: LED
- Backlight Service Life: >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
- Brightness: 200nit
- Brightness Control: 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
