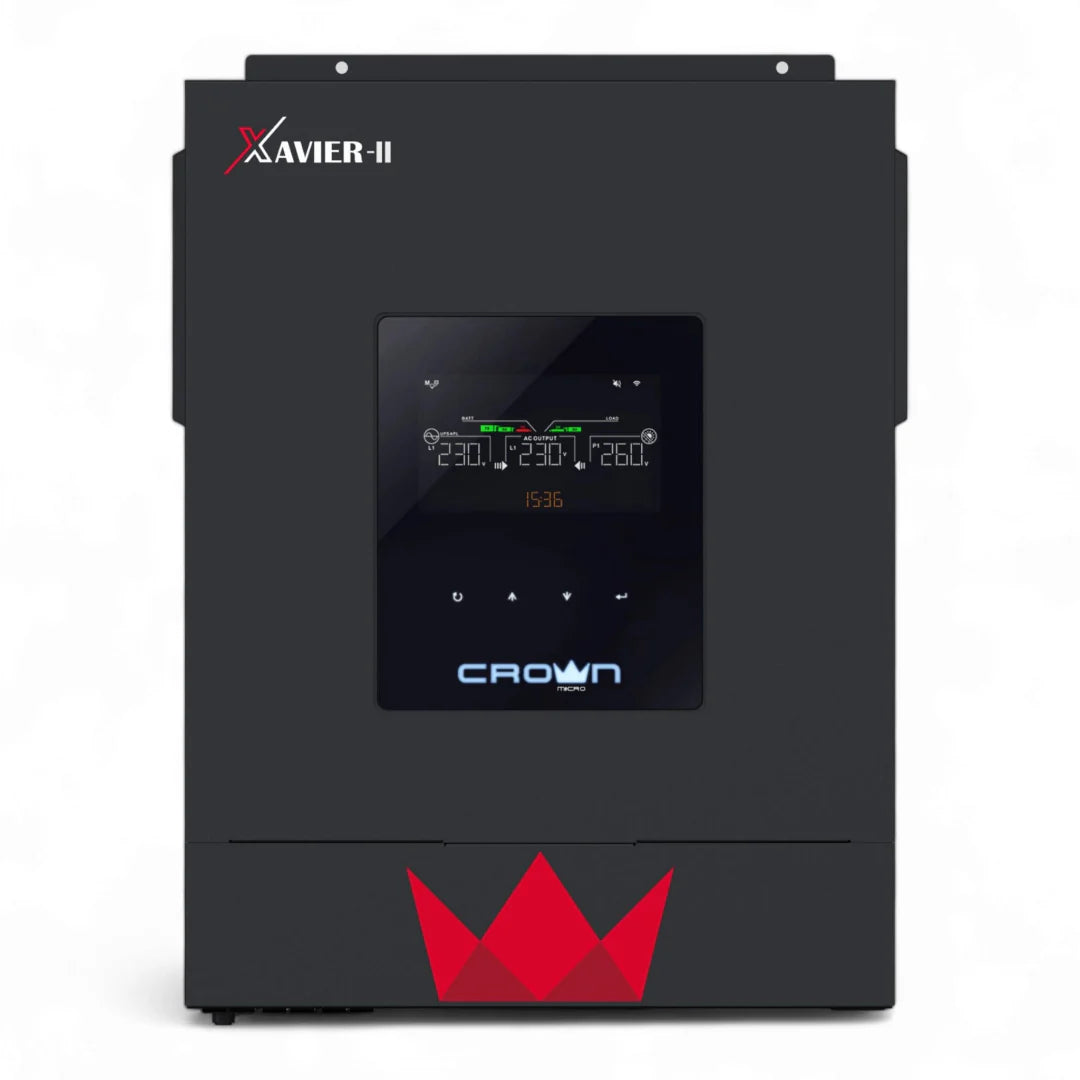

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter
Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter
Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Vendor: SmartEshop.Pk
SKU: Crown 4Kw
Availability: In Stock
Product Type: solar inverter
Rs.126,000.00
Rs.126,000.00
Subtotal: Rs.126,000.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 2 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Rs.126,000.00
Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter
Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter
Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

Rs.126,000.00
Description

Crown Xavier 4KW IP21 PV5000 Hybrid Solar Inverter

The Crown Xavier 4KW Hybrid Solar Inverter is an advanced, high-efficiency inverter that delivers reliable and stable solar power. With its pure sine wave output and user-friendly interface, it’s designed to provide seamless integration for off-grid, grid-tied, or hybrid solar systems. Perfect for homes or small businesses, this inverter is optimized for both solar energy and battery management.

Key Features

  • Pure Sine Wave Solar Inverter: Provides clean and stable power, making it suitable for sensitive electronics and home appliances.
  • 5″ LCD & Touchpad: Intuitive display and control interface, providing easy access to system status and settings.
  • Configurable AC/Solar Input Priority: Allows you to set the priority between AC (mains) and solar input, offering flexibility in power management based on your preferences.
  • Compatible with Mains Voltage or Generator Power: Adaptable to different power sources, ensuring reliable operation in various conditions.
  • Auto Restart: Automatically restarts when AC power recovers, ensuring continuous power supply without manual intervention.
  • Overload & Short-Circuit Protection: Safeguards the system against overloads and short circuits, ensuring durability and safe operation.
  • Smart Battery Charger Design: Optimizes battery charging for better performance and extended battery life.
  • Selectable High-Power Charging Current: Offers the ability to choose a higher charging current for faster battery charging when needed.
  • Selectable Input Voltage Range: Tailors the input voltage to suit home appliances and personal computers for efficient power usage.
  • Cold Start Function: Allows the inverter to start up without the need for AC power, providing power from the battery for initial operation.

Specifications

  • Rated Output Power: 4KW
  • Maximum PV Input Power: 5000W
  • Display: 5″ LCD with touchpad
  • Operation Modes: Hybrid (works with both solar and AC power)
  • Battery Charger Design: Smart design for optimal battery performance
  • Protection: Overload, short-circuit, and other safety protections
  • Cold Start: Supports start-up without AC power

The Crown Xavier 4KW Hybrid Solar Inverter is ideal for those looking for a reliable and efficient solar energy solution. With advanced features like high-power charging, configurable settings, and a user-friendly interface, it provides great flexibility for residential and small commercial installations.

MODEL NAME XAVIER-4KW
MODEL NUMBER
Rated Power 4000VA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 7200VA
Efficiency (Peak) 93%
Transfer Time

10 ms (For Personal Computers)

20 ms (For Home Appliances)
Waveform Pure sine wave
Dual Outputs Yes
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Array Power 5000W
Maximum PV Input Current 27A
MPPT Range @ Operating Voltage 60-450 VDC
Maxmum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Charge Current 120A
PHYSICAL
Dimension, D X W X H (mm) 107 x 322.6 x 420.3
Net Weight (kgs) 9.5
Communication Interface USB/RS-232 (optional USB/Dry contact)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C



The Crown Xavier 4KW ip21 Hybrid Solar Inverter boasts a variety of features, including a 4 kW pure sine wave solar inverter, a wide DC input range, and a 5″ LCD and touchpad. It also allows for configurable AC/solar input priority through LCD settings and is compatible with both mains voltage and generator power. In the event of an AC recovery, it has an automatic restart feature and is equipped with overload and short-circuit protection. With its smart battery charger design, it ensures optimized battery performance, while also offering a cold start function and selectable high-power charging current. Additionally, users can choose the input voltage range for their home appliances and personal computers.
