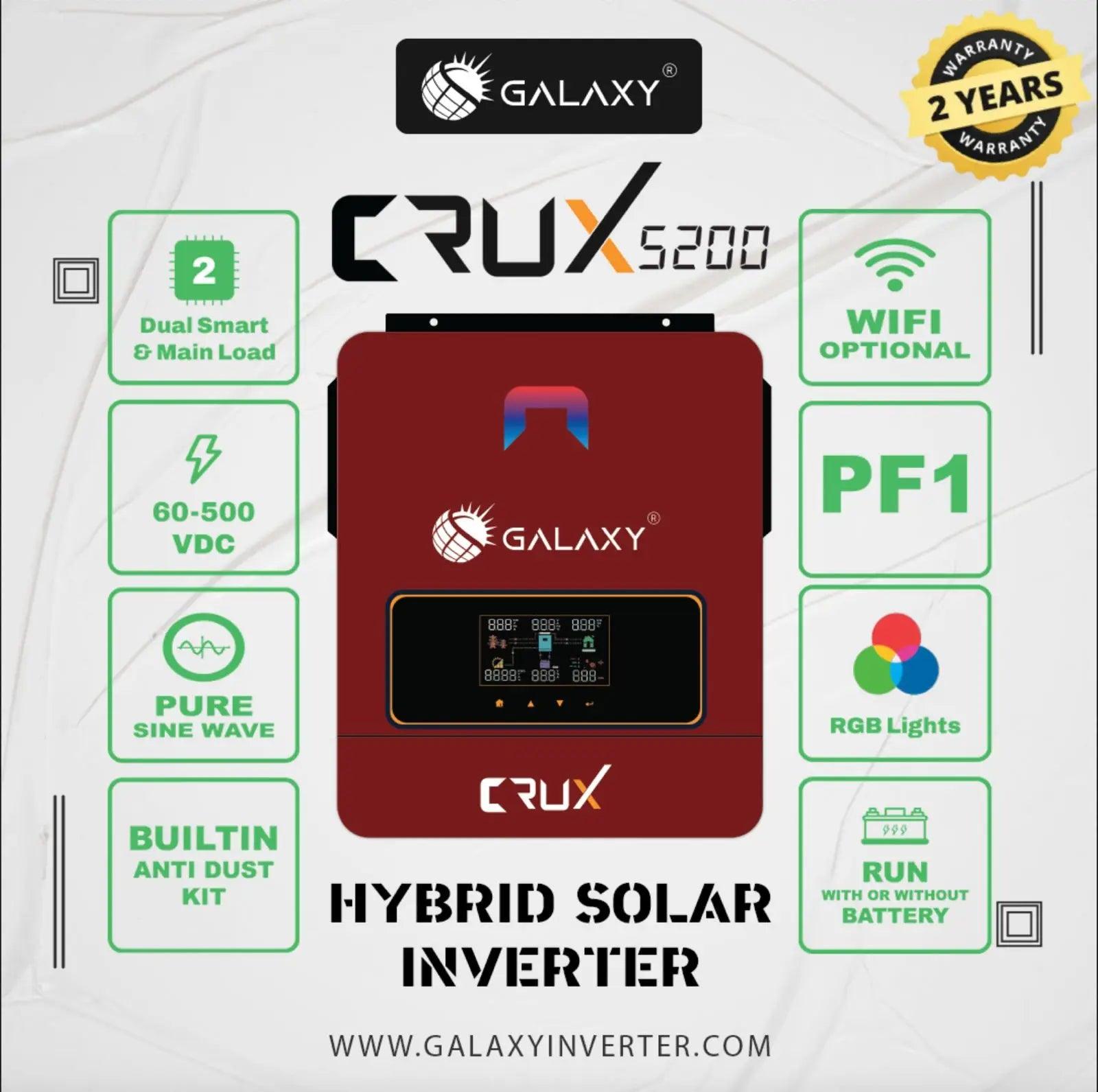

Galaxy PV5200 4.2kw Solar Hybrid Inverter Crux Series
Description
Galaxy PV5200 4.2kw Solar Hybrid Inverter Crux Series
- MODEL PV5200 Pluto SeriesRated Power 3600WDual outputWork with/ Without batteryINPUT Voltage 230 VACSelectable Voltage Range170-280 VAC (For Personal Computers) ;
- 90-280 VAC (For Home Appliances)Frequency Range50 Hz/60 Hz (Auto sensing)OUTPUT AC Voltage Regulation (Batt. Mode)230 VAC ± 5%Surge Power 7200VAEfficiency (Peak)90% ~ 93%Transfer Time10 ms (For Personal Computers) ;
-
20 ms (For Home Appliances)Waveform Pure sine waveBATTERY Battery Voltage24 VDCFloating Charge Voltage27 VDCOvercharge Protection33 VDCSOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage500 VDCMaximum PV Array Power 5200WMPP Range @ Operating Voltage120 ~ 450 VDCMaximum Solar Charge Current 100AMaximum AC Charge Current 80AMaximum Charge Current100APHYSICAL Dimension, D X W X H (mm)100 x 300 x 440Net Weight (kgs) 11Communication Interface USB/RS232ENVIRONMENTHumidity5% to 95%Relative Humidity (Non-condensing)Operating Temperature-10°C to 50°CStorage Temperature-15℃ to 50℃
Place Your Order And Get Free Complete Db Box.
Galaxy PV5200 4.2kw Solar Hybrid Inverter Crux Series
