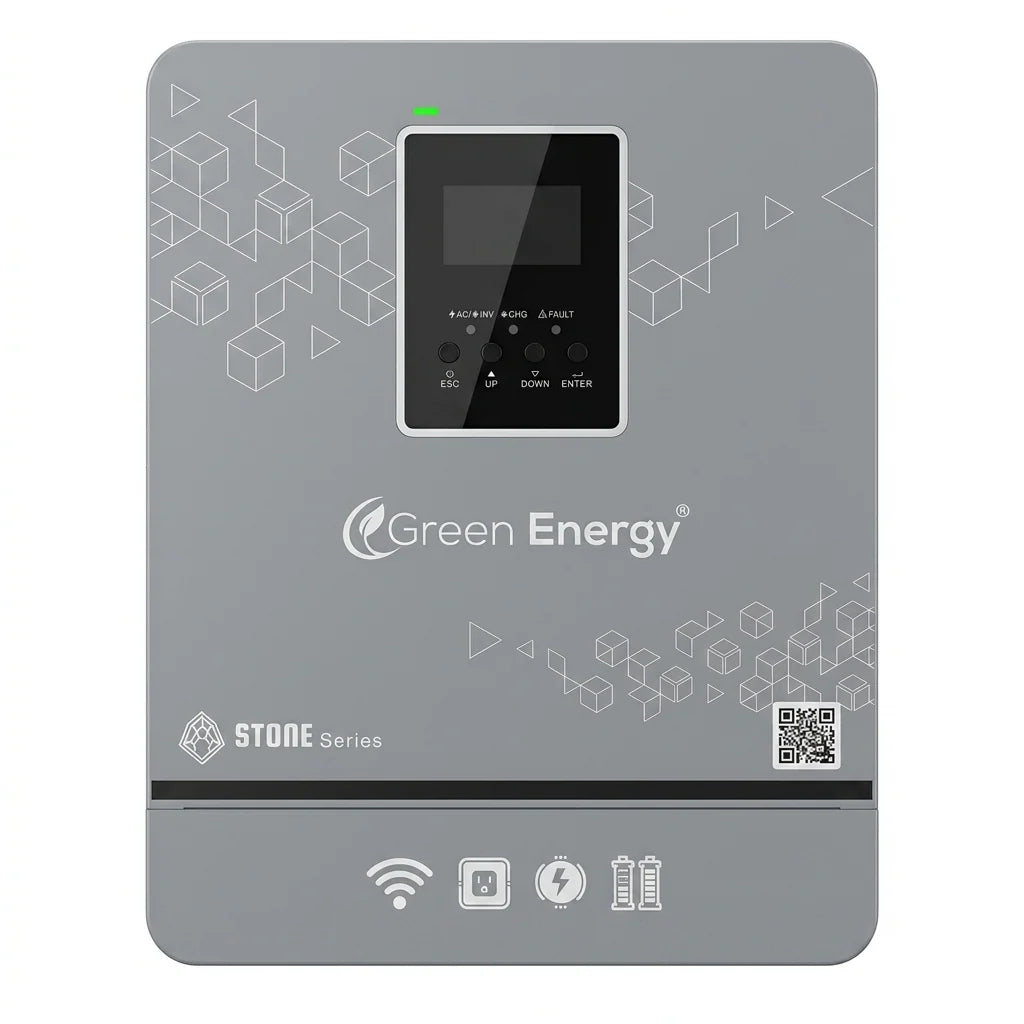

The Green Energy Stone Series PV5200 3.6KW Solar Inverter is a powerful and reliable 24V off-grid solar inverter designed for home backup, small offices, shops, and solar energy systems.
With a 3600W rated output and up to 7200VA peak power, the PV5200 provides stable Pure Sine Wave AC output, making it suitable for a wide range of household appliances, electronics, fans, lights, and other compatible loads.
The inverter features an advanced MPPT solar charger supporting up to 5200W of solar PV input. Its wide 30–500V DC MPPT voltage range allows flexible solar panel configuration and efficient solar energy harvesting. The maximum solar charging current is 100A, providing efficient battery charging for the 24V battery system.
The PV5200 supports multiple operating modes, including Solar Priority and UPS Mode, allowing users to configure the inverter according to their power requirements. Its intelligent LCD display provides useful information including operating mode, load, input/output status, and battery condition.
The inverter also provides an expansion communication interface that can support compatible Lithium Battery BMS cards, WiFi cards, and dry-contact accessories. It includes RS232 communication and built-in protection features for reliable everyday operation.
| Specification | Details |
|---|---|
| Model | STONE 3024PV5200 |
| Rated Output | 3600W |
| Peak Power | 7200VA |
| Battery Voltage | 24V DC |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 220 / 230 / 240VAC |
| Frequency | 50 / 60Hz Auto Adaptive |
| Maximum PV Power | 5200W |
| MPPT Range | 30–500V DC |
| Optimal Vmp Range | 300–400V DC |
| Maximum PV Voltage | 500V DC |
| Maximum PV Input Current | 13A |
| Maximum PV Charging Current | 100A |
| Maximum Mains Charging Current | 60A |
| Maximum Total Charging Current | 100A |
| Battery Charging Voltage | 28.2V Configurable |
| Float Charging Voltage | 27V Configurable |
| UPS Switching Time | 10ms |
| Appliance Switching Time | 20ms |
| Communication | RS232 |
| Expansion Interface | BMS / WiFi / Dry Contact |
| Parallel Operation | Not Supported |
| Operating Temperature | -10°C to +50°C |
| Noise Level | Less Than 45dB |
| Protection/Standard | EN-IEC60335-1, EN-IEC60335-2-29, IEC62109-1 |
