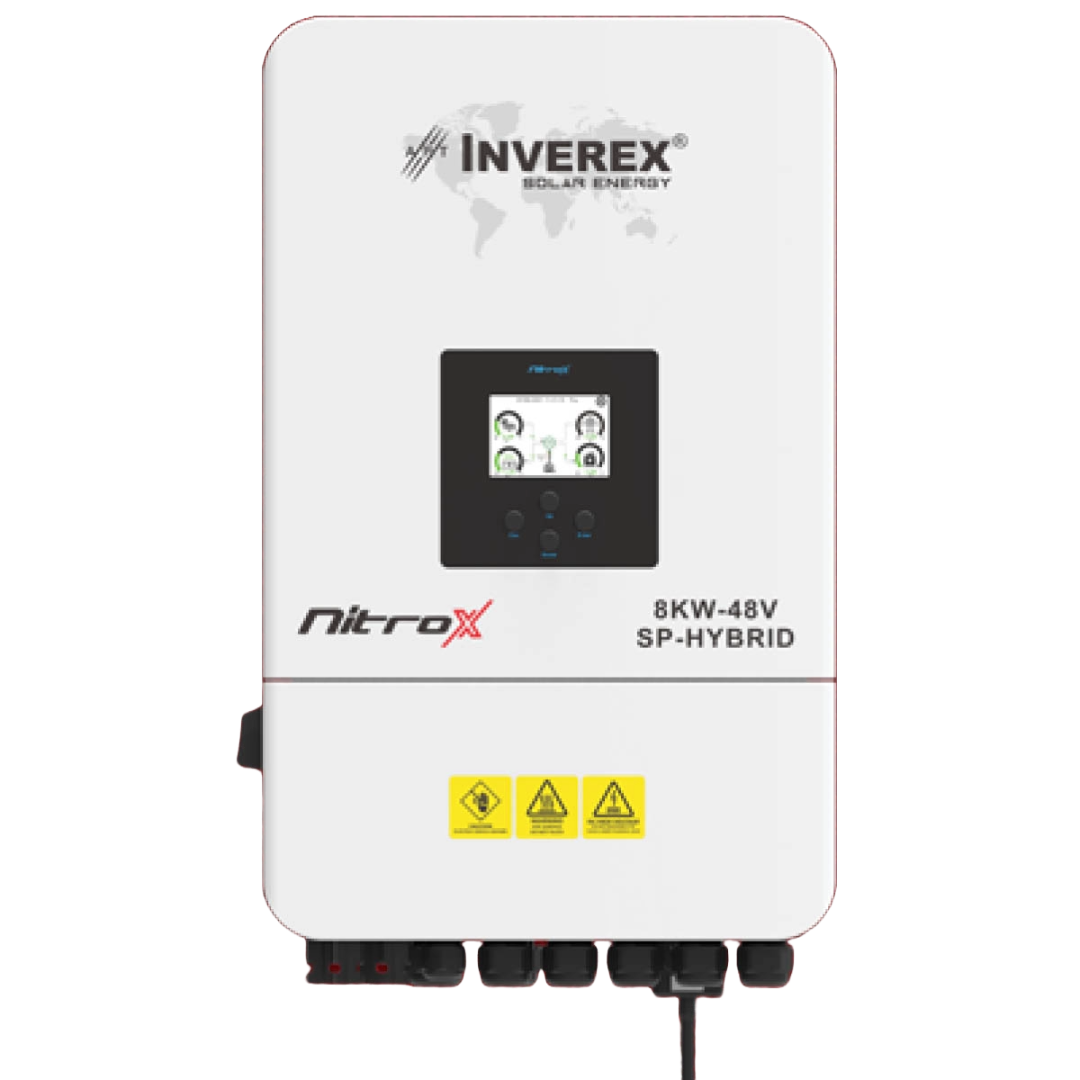

The Inverex Nitrox 8 KW - 48 V Solar Inverter is designed for homeowners looking to harness solar energy efficiently. With an 8 KW capacity and a 48 V system, this inverter offers a reliable and sustainable power solution that helps reduce your energy costs while protecting the environment.
The Inverex Nitrox 8 KW - 48 V Solar Inverter is an ideal choice for those seeking a high-performance, durable, and efficient solar energy solution. With its advanced features and easy-to-maintain design, this inverter ensures a sustainable, cost-effective future.
| Battery Input Data | |
| Battery Type | Lead-acid or Li-Ion |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 190 |
| Max. Discharging Current (A) | 190 |
| External Temperature Sensor | yes |
| Charging Curve | 3 Stages/Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 10400W |
| Rated PV Input Voltage (V) | 370 (125~500) |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Full Load DC Voltage Range (V) | 200-425 |
| PV Input Current (A) | 26+26A |
| Max. PV ISC (A) | 34+34 |
| Number of MPPT / Strings per MPPT | 2/2+2 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 8000 |
| Max. AC Output Power (W) | 8800 |
| AC Output Rated Current (A) | 36.4/34.8A |
| Max. AC Current (A) | 40/38.3A |
| Max. Continuous AC Passthrough (A) | 50 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; 220/230 (single phase) |
| Grid Type | Single Phase |
| DC injection current (mA) | THD<3 % (Linear load<1.5%) |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | >99% |
| Transfer time | 4ms |
| Protection | |
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection,Surge protection |
| Certifications and Standards | |
| Grid Regulation | EN50549,AS4777.2,VDE0126, IEC61727,VDEN4105,G99, NBT32004,CEI0-21,NRS097, NBR16149/16150, RD1699 |
| Safety EMC/Standard |
IEC62109-1/-2, EN61000-6-1, EN61000-6-2 , EN61000-6-3, EN61000-6-4 |
| General Data | |
| Operating Temperature Range (°C) | -45~60°C, >45°C derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 20.5 |
| Size (mm) | 330WX580HX232D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
