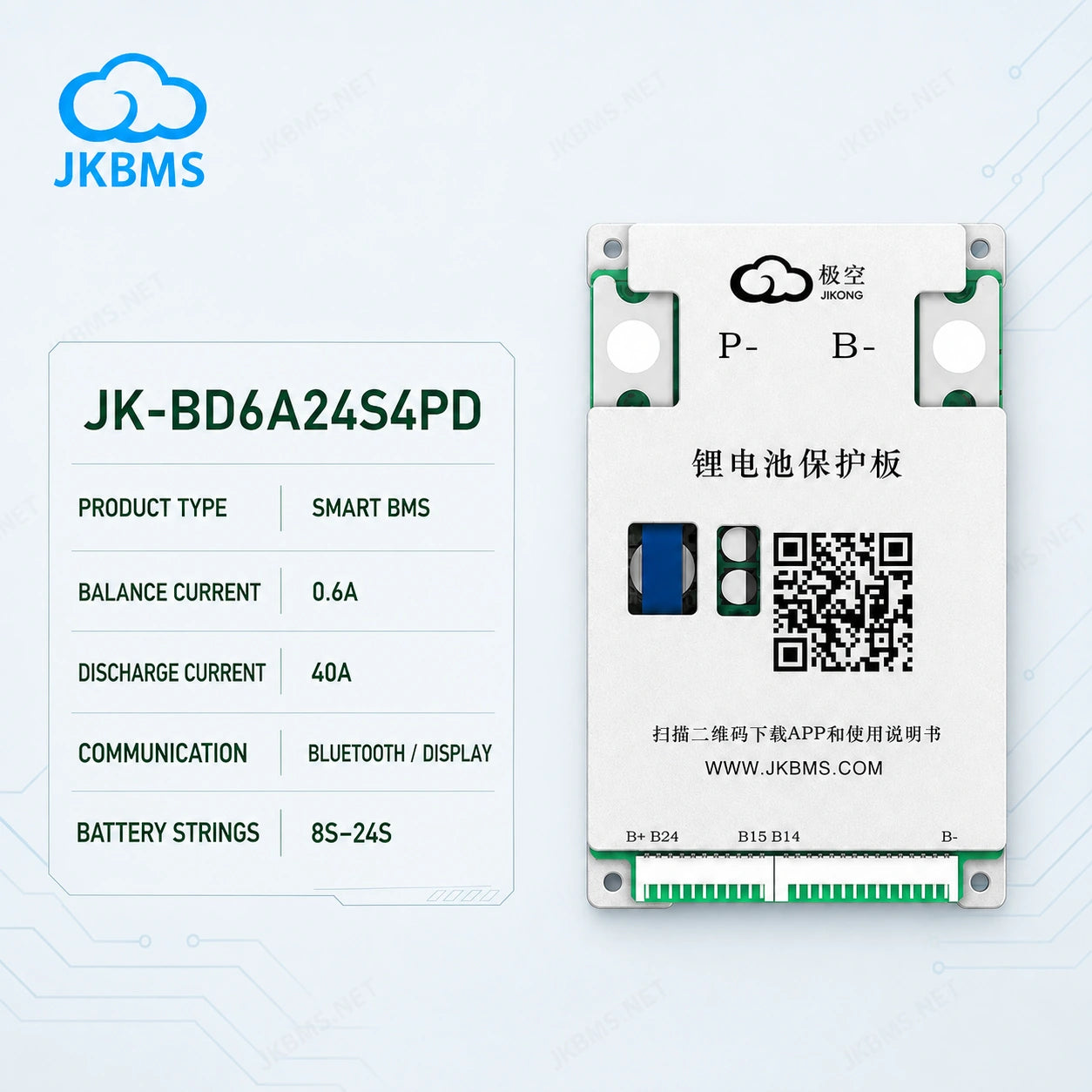

JK BMS JK-BD6A24S4PD 40A Smart Active Balance BMS

The JK BMS JK-BD6A24S4PD is a smart Battery Management System designed for compatible lithium battery packs with 8S to 24S configurations. Featuring a 40A charge and discharge rating and a 0.6A active balancing system, this JK Smart BMS helps manage individual cell voltages and maintain better balance across the battery pack.

With Bluetooth connectivity and smart monitoring functionality, the JK-BD6A24S4PD is suitable for battery builders, solar energy storage projects and custom lithium battery pack applications that require configurable battery protection and cell balancing.

Key Features of JK-BD6A24S4PD

• Brand: JK BMS / JIKONG

• Model: JK-BD6A24S4PD

• BMS Type: Smart Battery Management System

• Battery Configuration: 8S–24S

• Continuous Charge Current: 40A

• Continuous Discharge Current: 40A

• Active Balancing Current: 0.6A

• Communication: Bluetooth

• Monitoring: Compatible display options, depending on configuration

• Supported Battery Chemistries: LiFePO4, Li-ion and LTO, with suitable settings

• Application: Compatible lithium battery packs and energy storage systems

0.6A Active Cell Balancing

The integrated active balancer transfers energy between cells to help reduce voltage differences across the battery pack. Compared with conventional passive balancing, active balancing redistributes energy rather than simply dissipating excess energy as heat.

Proper cell balancing can help maintain more consistent cell voltages and improve usable battery capacity when the cells and system are correctly configured.

Smart Bluetooth Monitoring

Bluetooth connectivity allows users to monitor compatible battery parameters through the supported JK BMS application. Depending on the hardware and configuration, available information can include individual cell voltages, battery current, temperature and balancing status.

Suitable Applications

• Solar lithium battery storage systems

• LiFePO4 battery pack assembly

• Custom rechargeable battery packs

• Compatible backup power systems

• DIY energy storage projects

• Battery repair and replacement projects

Important Compatibility Information

Before purchasing, confirm that the battery's series configuration, chemistry, cell voltage limits and current requirements are compatible with this model. The 40A rating is not a substitute for checking the inverter or load requirements. Install the BMS according to the manufacturer's wiring instructions.

Display, CAN bus, RS485 and heating functions may depend on the selected version or optional configuration. Confirm the included accessories and communication functions before ordering.
