JK Smart Inverter BMS 100A (8-16S) with 1A Active Balancer
The JK Smart Inverter BMS 100A (8-16S) is an advanced battery management system designed for solar and inverter energy storage applications. Equipped with a 1A active balancer, it ensures perfect cell voltage balance, improving efficiency, stability, and battery lifespan.
⚙ Key Features
- Supports 8S to 16S lithium batteries (LiFePO4, Li-ion, LTO)
- Continuous current capacity: 100A charge/discharge
- 1A active balancing for voltage equalization
- Bluetooth & mobile app for settings and monitoring
- Advanced protections: overcharge, over-discharge, short circuit, temperature
- High-efficiency aluminum heat dissipation system
📊 Technical Specifications
- Model: JK Inverter BMS 100A
- Series Support: 8S–16S
- Balance Current: 1A (active balance)
- Rated Current: 100A continuous
- Communication: Bluetooth / UART
- Operating Temperature: –20°C to +70°C
💡 Benefits
This BMS provides smart protection and real-time data monitoring for your battery system. Whether you’re running a home solar setup, inverter backup, or DIY energy storage project, the JK Inverter BMS ensures reliable performance and long-term safety.

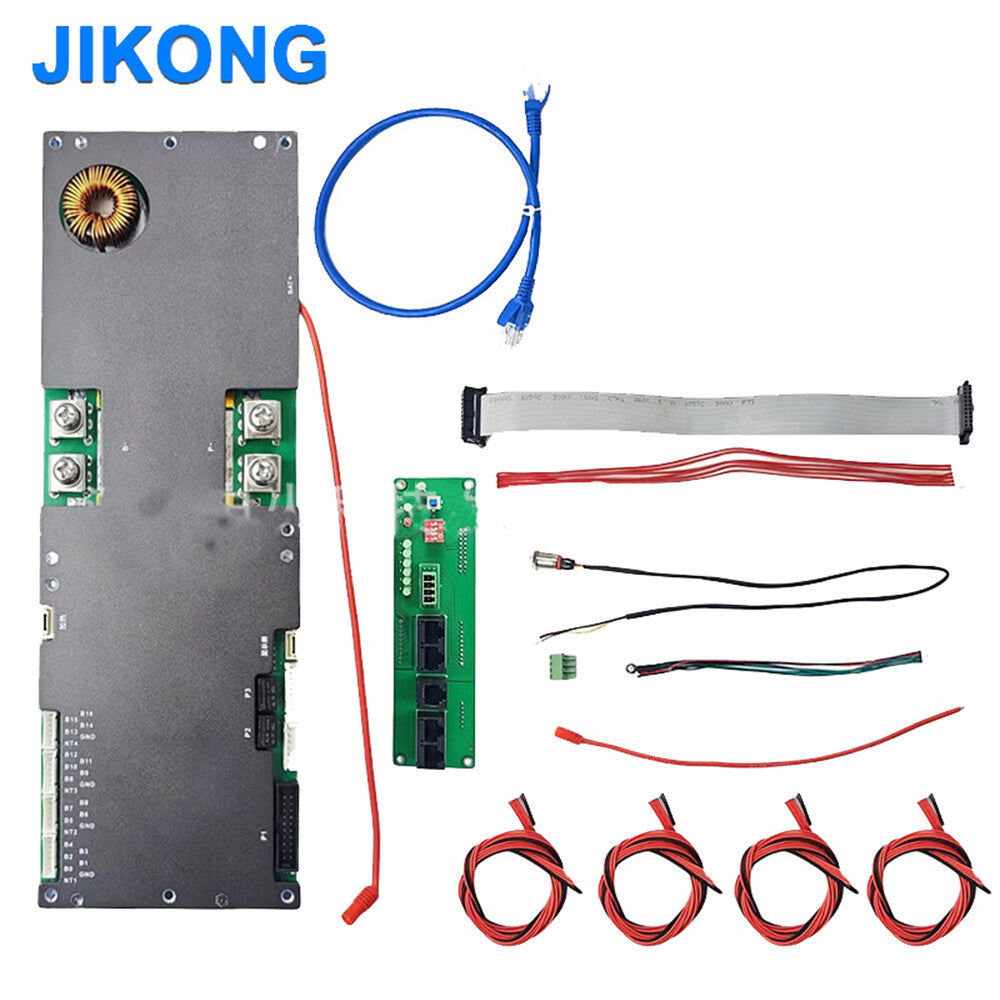

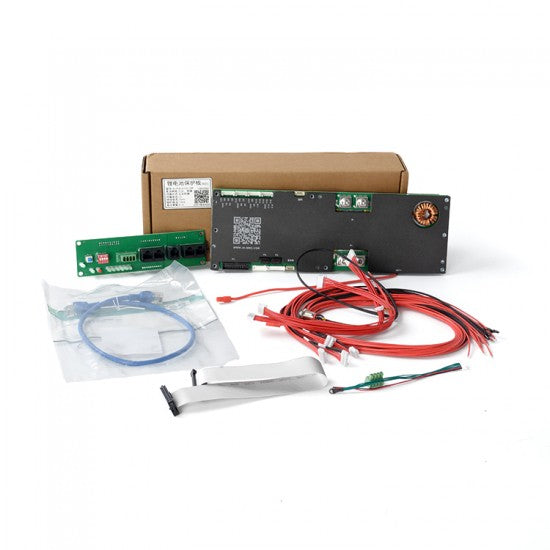

📦 Package Includes
- 1 × JK Inverter BMS 100A (8–16S)
- 1 × Active Balancing Cable Set
- 1 × Bluetooth Module (optional)
- User Manual (Digital PDF)
🔗 Check your inverter compatibility with our BMS systems:
https://inverterzone.net/list.html
❓ Frequently Asked Questions
Q: Does it support 48V systems?
A: Yes, the 16S configuration is suitable for 48V nominal battery packs.
Q: Is configuration via mobile app required?
A: Yes, initial setup and adjustments can be made easily using the JK app via Bluetooth.
Q: Can it work with solar charge controllers?
A: Yes, it’s fully compatible with most inverter and solar controller setups.
Q: Does it include temperature sensors?
A: Yes, it comes with built-in thermal protection and external temperature probe support.
Visit our JK Smart BMS Collection for more compatible accessories and models.
