JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

Write A Review
Rs.6,999
Rs.6,999
Subtotal: Rs.6,999
Hurry up! only 10 left
WhatsApp Icon Click Order On WhatsApp
JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

Rs.6,999
JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

Rs.6,999
Description

JIKONG JK V19 4.3 Inch Touch LCD Display for Smart BMS

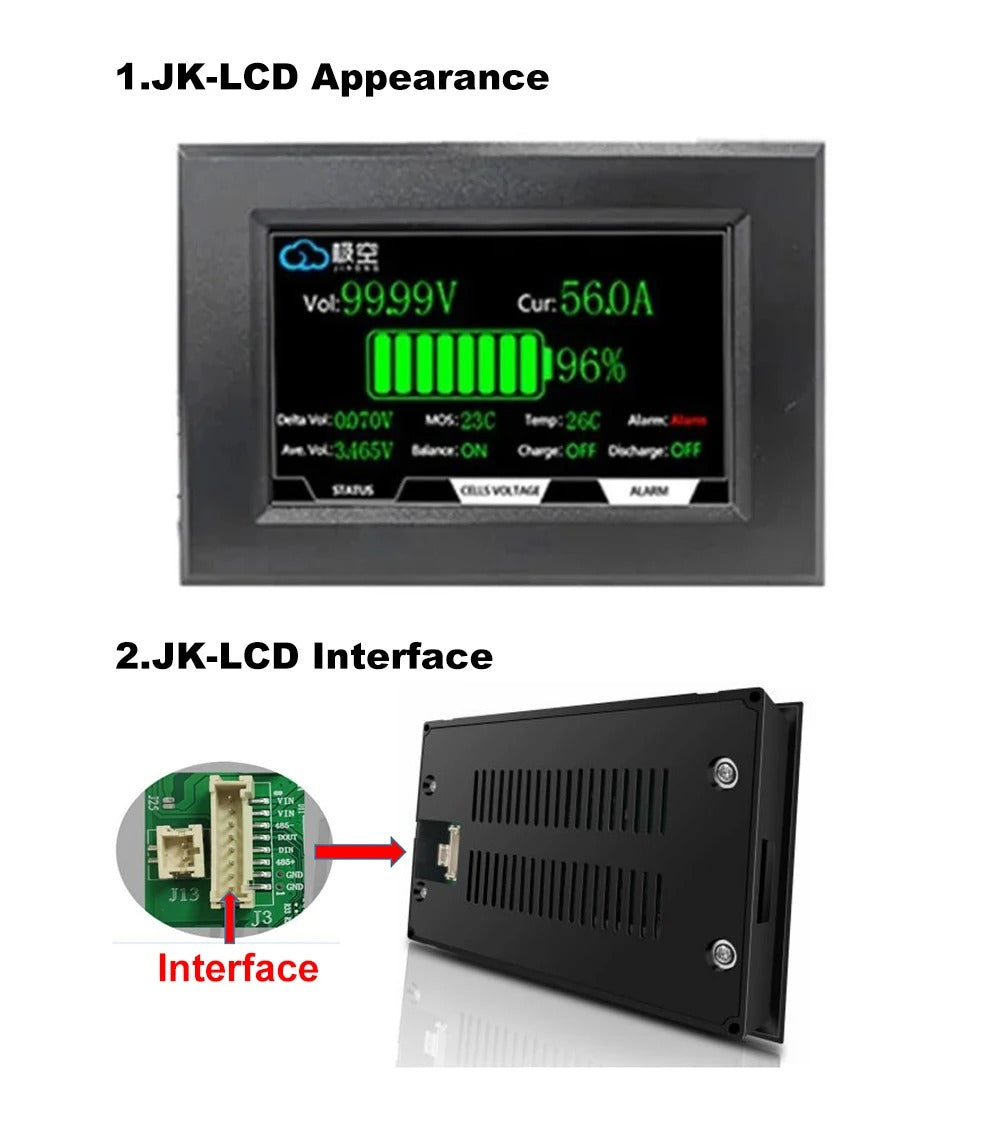

Monitor your lithium battery system with the JIKONG JK V19 4.3 Inch Touch LCD Display. Designed as an accessory for compatible JK Smart BMS units, this touchscreen display provides a convenient way to view important battery information directly on the screen.

With its large 4.3-inch TFT display, clear 480 × 272 resolution and touch interface, it makes battery monitoring easier for solar energy storage systems, lithium battery packs and other compatible applications.

Key Features

  • 4.3-Inch Touch Display: Large touchscreen for convenient battery monitoring.

  • TFT LCD Technology: Clear and easy-to-read display.

  • 480 × 272 Resolution: Detailed screen presentation.

  • Battery Voltage Monitoring: View total battery voltage.

  • Battery Power Information: Monitor battery power information.

  • Individual Cell Voltage: View single-series battery voltage information.

  • Wide Supply Voltage: Supports a 9–36V DC operating supply.

  • Multiple Language Support: Supports Chinese, English, Thai and Vietnamese.

  • Customizable Interface: Supports language, logo and display interface customization.

  • TTL Communication: Supports TTL-level communication with a default baud rate of 115200bps.

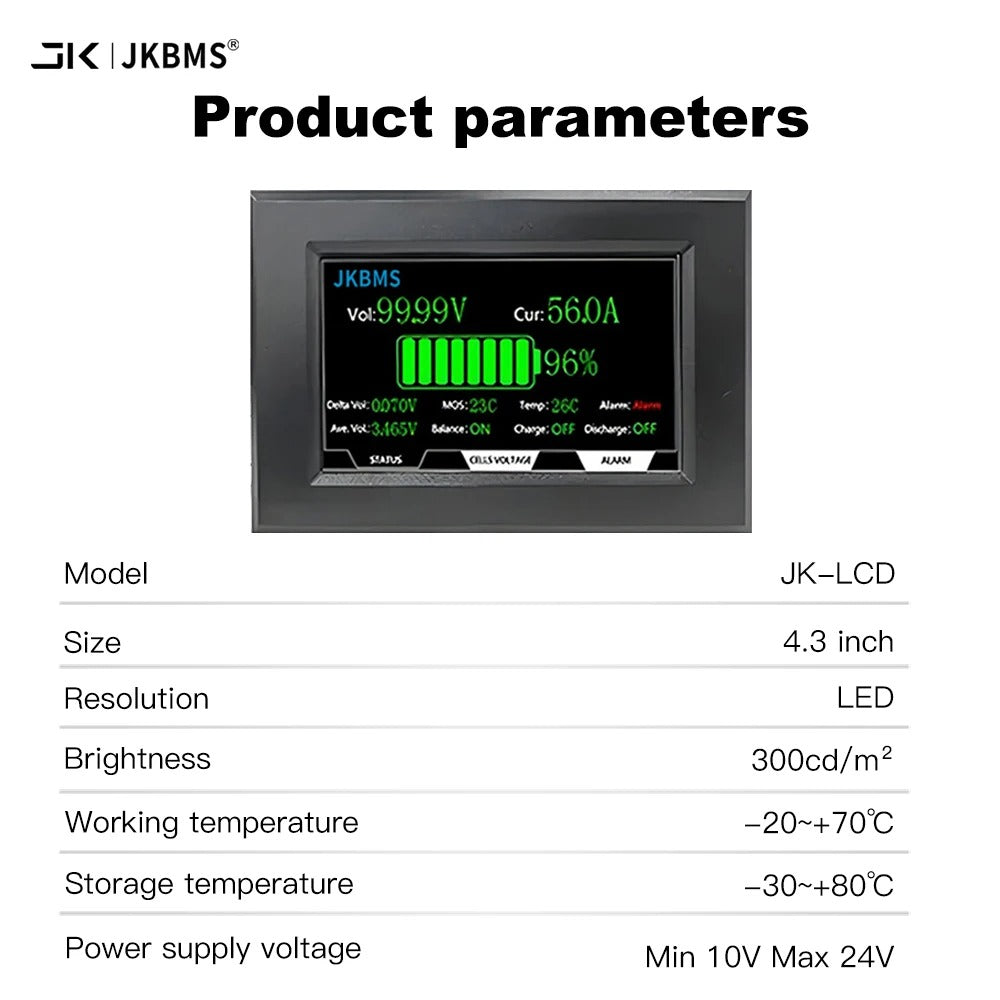

Technical Specifications

Specification Details
Brand JIKONG
Model JK V19
Product Type Smart BMS Touch LCD Display
Display Technology TFT
Screen Size 4.3 Inches
Resolution 480 × 272
Backlight LED
Brightness 300 nits
Viewing Angle 85° / 85° / 85° / 85°
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Operating Supply 9–36V DC
Communication TTL
Default Baud Rate 115200 bps
Supported Languages Chinese, English, Thai, Vietnamese
Interface Customization Supported

Compatible Applications

  • Compatible JIKONG JK Smart BMS systems

  • LiFePO4 lithium battery packs

  • Lithium-ion battery systems

  • LTO battery applications

  • Solar energy storage systems

  • Inverter and UPS battery systems

Compatibility Note: This display is intended for compatible JK BMS units. Please confirm your exact JK BMS model and V19 version before ordering.

Package Includes

  • 1 × JIKONG 4.3-Inch Touch LCD Display

  • 1 × Connection Cable (50cm, as listed by the seller)

Why Choose the JIKONG JK V19 Touch Display?

The JIKONG 4.3-inch touchscreen provides a convenient monitoring interface for compatible lithium battery systems. Its large display, multiple language support and TTL communication make it a useful accessory for battery technicians, solar installers and lithium battery assemblers.

Order the JIKONG JK V19 4.3 Inch Touch LCD BMS Display from SmartEshop.pk.
