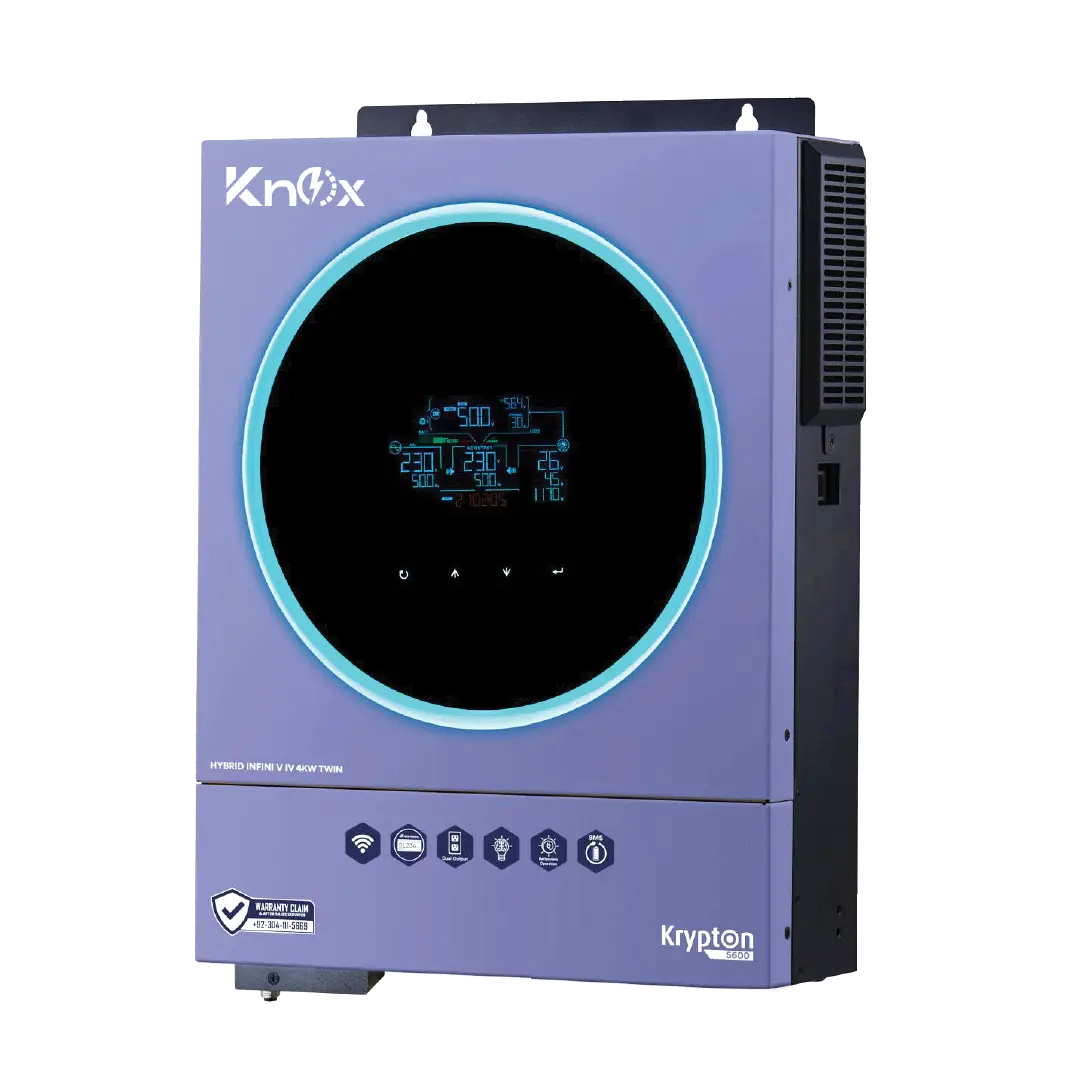

Knox Krypton 5600 4KW Hybrid Solar Inverter With PV 5600W

Knox Krypton 5600 4KW Hybrid Solar Inverter With PV 5600W

Rs.119,999.00

Knox Krypton 5600 4KW Hybrid Solar Inverter With PV 5600W

Rs.119,999.00

Knox Krypton 5600 4KW Hybrid Solar Inverter with PV 5600W

The Knox Krypton 5600 is a 4KW hybrid solar inverter designed to deliver reliable performance for both residential and small commercial solar systems. With built-in Wi-Fi for online monitoring, this inverter allows easy access to system data and efficient energy management.

Key Features

  • Built-In Wi-Fi for Online Monitoring: Enables remote monitoring and control, providing real-time system updates and performance data.
  • Durability and Protection with IP21 Rating: Offers protection from dust and water splashes, ideal for indoor and mild outdoor installations.
  • Dual Output for Smart & Heavy Load: Supports both light electronics and heavy-duty appliances, offering versatility in load management.
  • Grid-Tied Solar Power Integration: Seamlessly integrates with the grid, maximizing solar power utilization and efficient energy consumption.
  • Batteryless Operation: Designed to operate without a battery, offering a cost-effective solution for grid-connected solar power systems.
  • Battery Management System: Enhances the longevity and efficiency of connected batteries, ensuring optimal performance when used.

Technical Data Sheet:

KNOX SERIES Krypton 5600
MODEL HYBRID INFINI V IV
4KW TWIN
Phase Single Phase
Maximum PV Input Power 5600 W
Rated Output Power 4000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC
MPP Voltage Range 60 ~ 450 VDC
Number of MPP T rackers / Maximum Input Current 1 / 27A (MAX 40A)
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 170-280 VAC (For
Personal Computers)
90-280 VAC (For
Home Appliances)
Nominal Output Current 18 A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 - 280 VAC or 170 - 280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 93%
DC Voltage 12 VDC ± 5%, 100W
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
BATTERY & CHARGER
Nominal DC Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
Solar Charger type MPPT
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Surge Power 8000VA
GENERAL
PHYSICAL
Dimension, D x W x H (mm) 119 x 313.6 x 457.5
Net Weight (kgs) 12
INTERACE
Parallel Function Yes, 9 units
Communication Port USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C


The Knox Krypton 5600 is perfect for users looking for a compact, efficient, and reliable hybrid solar inverter solution for both home and light commercial use.
