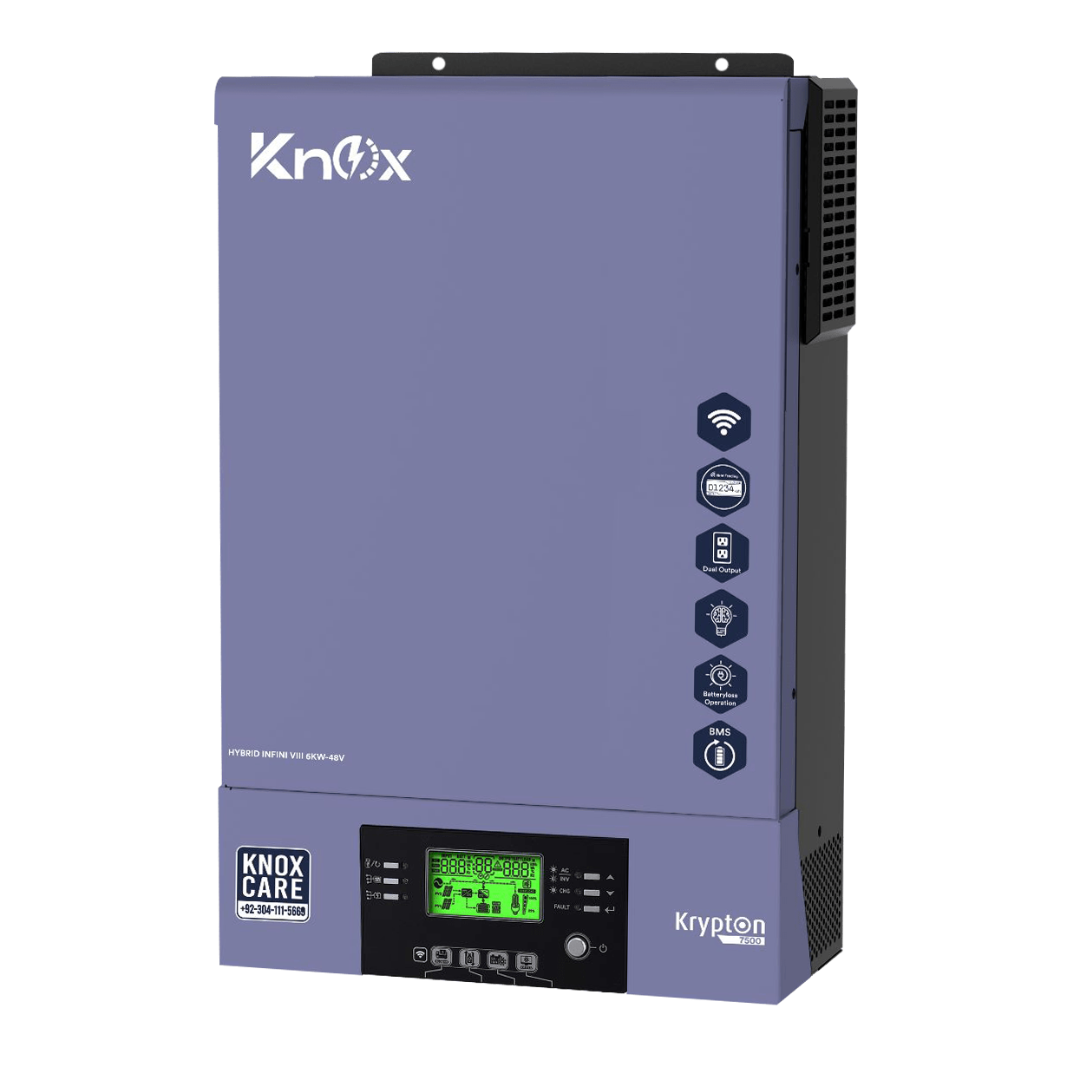

Knox Krypton 7500 6KW Hybrid Solar Inverter with PV 7500W

The Knox Krypton 7500 is a 6KW hybrid solar inverter, offering a combination of reliable performance and essential features for efficient energy management. It includes built-in Wi-Fi for online monitoring and is designed to integrate seamlessly with both smart and heavy load applications.

Key Features

  • Built-In Wi-Fi for Online Monitoring: Enables remote monitoring and control, providing easy access to system data through a mobile app.
  • Durability and Protection with IP21 Rating: Provides protection against dust and water splashes, making it suitable for indoor and mild outdoor environments.
  • Dual Output for Smart & Heavy Load: Supports both sensitive electronics and high-power appliances with its dual-output configuration.
  • Grid-Tied Solar Power Integration: Ensures efficient integration with the grid for seamless energy usage and feed-in capabilities.
  • Batteryless Operation: Operates without a battery, offering a cost-effective solution for solar power systems.
  • Battery Management System: Optimizes battery health and performance when included in the system, enhancing battery longevity.

The Knox Krypton 7500 is ideal for residential and small commercial applications, offering an efficient, batteryless solar solution with the flexibility to expand as needed.

Technical Data Sheet:

KNOX SERIES Krypton 7500
MODEL HYBRID INFINI V
III 6KW-48V
Phase Single Phase
Maximum PV Input Power 7500 W
Rated Output Power 6000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP T rackers / Maximum Input Current 1 / 27A (MAX 40A)
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current 26 A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 - 280 VAC or 170 - 280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 93%
DC Voltage 12 VDC ± 5%, 100W
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger type MPPT
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Surge Power 12000VA
GENERAL
PHYSICAL
Dimension, D x W x H (mm) 140 x 365 x 468
Net Weight (kgs) 11
INTERACE
Parallel Function Yes, 9 units
Communication Port USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
