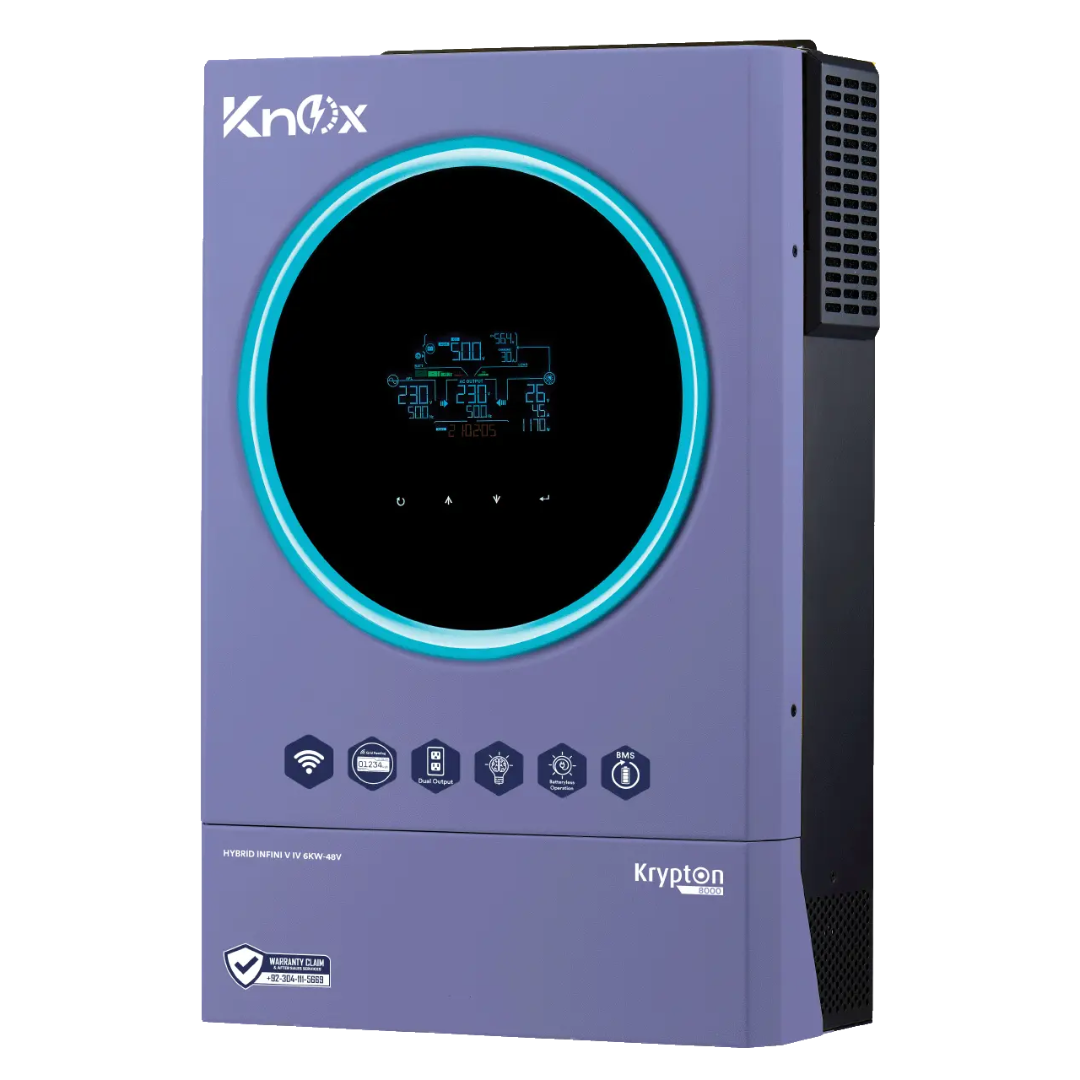

Knox Krypton 8000 6KW Hybrid Solar Inverter With PV 8000W

Vendor: SmartEshop.Pk
SKU: Knox8000
Availability: In Stock
Product Type: solar inverter
Rs.158,999.00
Rs.158,999.00
Subtotal: Rs.158,999.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 2 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

Knox Krypton 8000 6KW Hybrid Solar Inverter With PV 8000W

Knox Krypton 8000 6KW Hybrid Solar Inverter With PV 8000W

Rs.158,999.00

Knox Krypton 8000 6KW Hybrid Solar Inverter With PV 8000W

Rs.158,999.00

Knox Krypton 8000 6KW Hybrid Solar Inverter with PV 8000W

The Knox Krypton 8000 is a 6KW hybrid solar inverter designed for reliable solar energy management. It offers essential features such as built-in Wi-Fi for remote monitoring, durability with an IP21 rating, and efficient integration with both smart and heavy loads.

Key Features

  • Built-In Wi-Fi for Online Monitoring: Allows remote monitoring and control through a mobile app for easy system management.
  • Durability and Protection with IP21 Rating: Provides protection against dust and water splashes, suitable for indoor and mild outdoor environments.
  • Dual Output for Smart & Heavy Load: Supports both delicate electronics and high-power appliances with dual outputs.
  • Grid-Tied Solar Power Integration: Enables seamless integration with the grid, allowing for efficient energy use and feed-in options.
  • Batteryless Operation: Can operate without a battery, reducing costs and maintenance needs.
  • Battery Management System: Ensures optimal battery performance and longevity when batteries are included in the system.

The Knox Krypton 8000 is perfect for smaller residential and commercial setups where efficient and reliable solar power management is required.

Technical Data Sheet:

KNOX SERIES Krypton 8000
MODEL INFINISOLAR V
4 TWIN 6KW
Phase Single Phase
Maximum PV Input Power 8000W
Rated Output Power 6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP T rackers / Maximum Input Current 1 / 27A (MAX 40A)
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current 26 A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 - 280 VAC or 170 - 280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 93%
DC Voltage 12 VDC ± 5%, 100W
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger type MPPT
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Surge Power
GENERAL
PHYSICAL
Dimension, D x W x H (mm) 140 x 295 x 468
Net Weight (kgs) 12
INTERACE
Parallel Function Yes, 9 units
Communication Port USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
