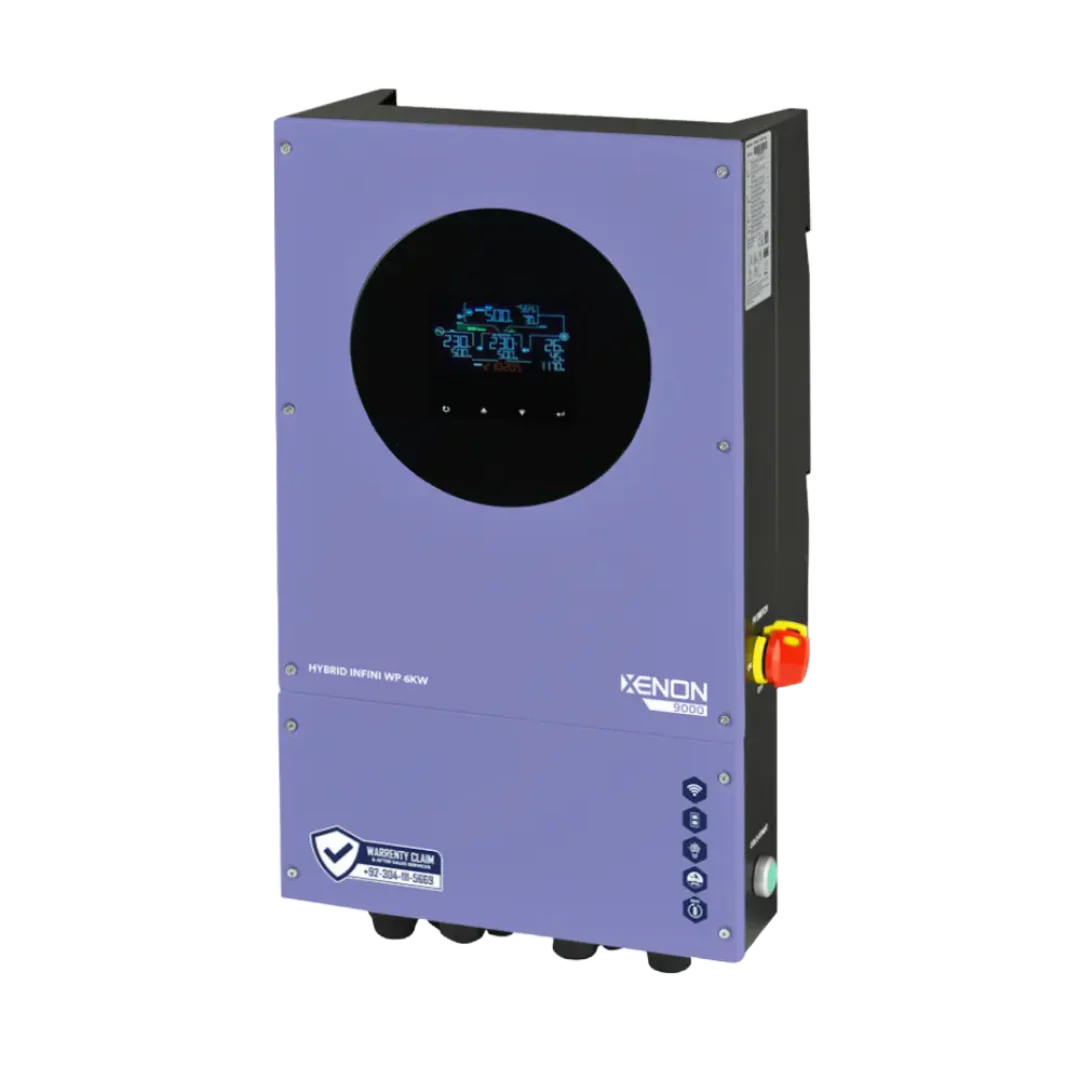

The Knox Xenon 9000 is a high-performance hybrid solar inverter designed to optimize solar energy conversion with integrated battery management and grid-tied functionality. Built for efficiency and durability, this inverter features a range of smart functionalities to support both residential and commercial applications.
The Knox Xenon 9000 is a robust, feature-rich hybrid inverter that ensures reliable solar energy conversion, high-efficiency operation, and seamless integration with both the grid and battery systems. With its advanced protection features and extended warranty, it's an excellent choice for sustainable energy solutions.
KNOX SERIES | Xenon 9000 |
MODEL |
INFINI V 4 WP 6KW PLUS |
Phase | 1-phase in / 1-phase out |
Maximum Pv Input Power | 9000 W |
Rated Output Power | 6000VA/6000W |
Maximum Charging Power | 6000 W |
GRID-TIE OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
Start-up Voltage / Initial Feeding Voltage | 80 VDC / 150 VDC |
MPP Voltage Range | 120 VDC ~ 400 VDC |
Number of MPP Trackers / Maximum Input Current | 2 / 18A |
Number of Strings Per MPP Tracker | |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240 VAC |
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) |
Nominal Output Current | 26A |
Power Factor range | > 0.99 |
Surge Power | 12000VA |
No Load Power Consumption | < 60W |
EFFICIENCY | |
Maximum Conversion Efficiency (DC/AC) | 96% |
European Efficiency@ Vnominal | 95% |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage / Auto Restart Voltage | 60 - 80 VAC / 180 VAC |
Acceptable Input Voltage Range | 170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
PV INPUT (DC) | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 66 VDC |
Output Waveform | Pure sine wave |
Transfer Time | 10 ms (For Personal Computers) |
20 ms (For Home Appliances) | |
Efficiency (DC to AC) | 90% - 93% |
BATTERY & CHARGER | |
Battery Voltage Range | 48 VDC |
Maximum Charging Current | 120 A |
SOLAR CHARGER & AC CHARGER | |
Solar Charger type | MPPT |
GENERAL | |
PHYSICAL | |
Dimension, D x W x H (mm) | 192 x 385 x 665 |
Net Weight (kgs) | 28 |
INTERFACE | |
Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
Intelligent Slot | Optional for SNMP and Modbus cards |
Parallel Capability | Yes, 9 units |
ENVIRONMENT | |
Humidity | 0 ~ 100% RH (No condensing) |
Operating Temperature | -25 to 60°C |
Storage Temperature | -15^{O} C to 60^{O} C |
Altitude | 0 ~ 1000 m** |
