LCD 4 in 1 DC Power Energy Meter Monitor Voltmeter Ammeter DC14.00-600.0V 20A/50A/100A Volt Amp Watt KWH Monitor
Description

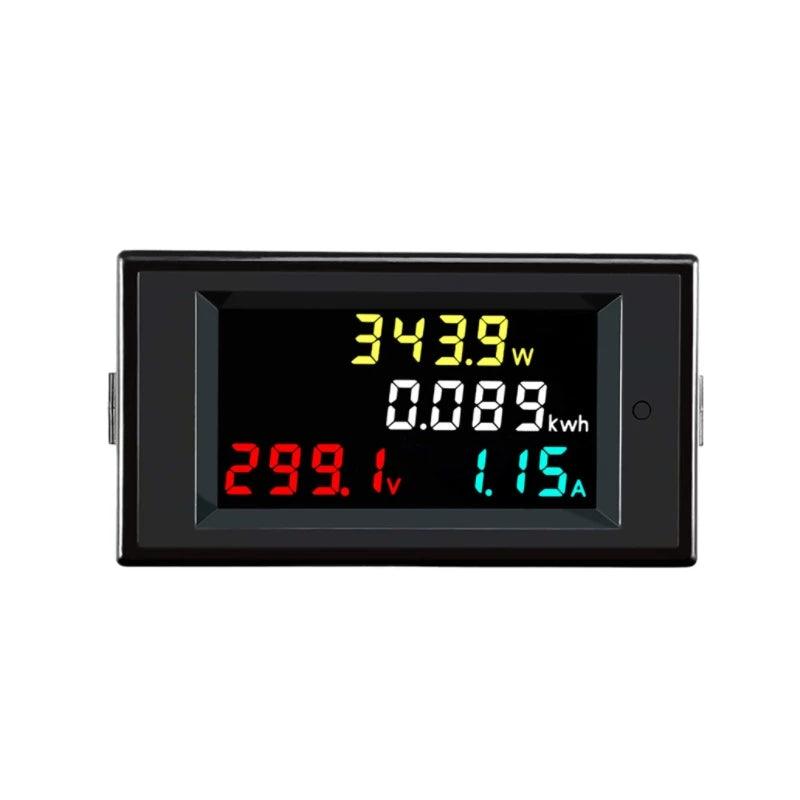

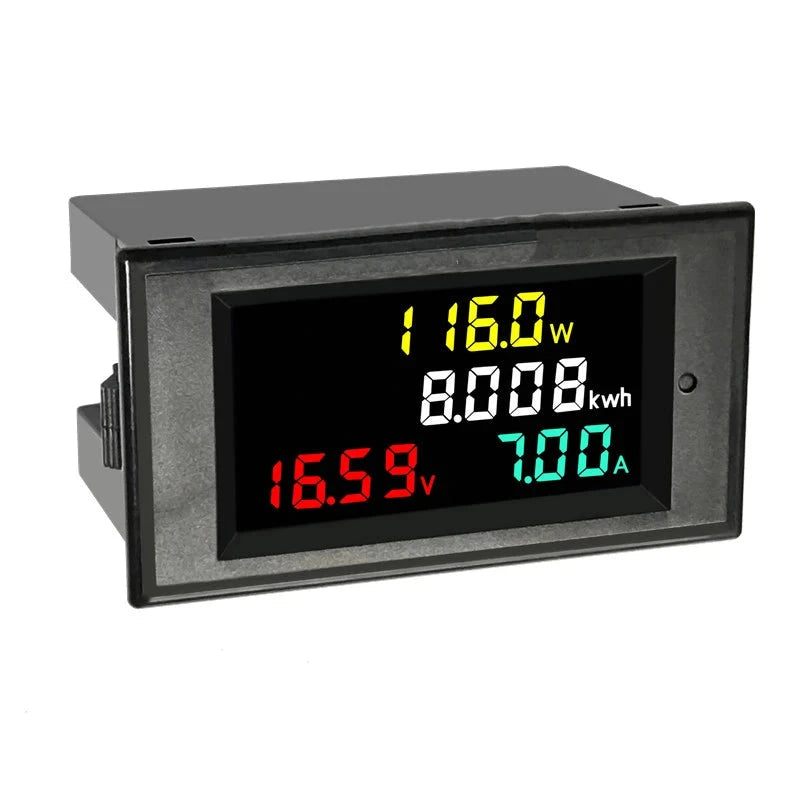

1. Full-view color LED display, simultaneously displaying four electrical parameters: DC voltage, current, power and electricity.
2. Automatic saving function of power measurement data: when power is off, the meter will automatically save the current power value, and the meter will automatically read the value after the next power-on, and continue to accumulate on the accumulated value.
3. Press and hold the reset button on the front panel of the meter for 5 seconds, and the accumulated power value of the meter will be reset to zero.
4. This meter does not need an external working power supply, and the measured voltage is the working voltage of the meter.
Specification
Product name: LCD numerical DC meter
Display: HD LCD color display
Dimensions: 79*43*48mm
Installation size: 76*39mm
Measurement accuracy: 1%±2 words
Function test: DC voltage, current, power, electric energy (electricity)
1. Working voltage: 7-20VDC 14-600VDC
2.Measuring voltage: 7.00-20.00V DC14-600VDC
3. Measuring current: 0-20.00A (built-in shunt in the meter)
0-50.00A (need to be equipped with 50/75mV shunt separately)
0-100.0A (Additional 50/75mV shunt is required)
4. Measuring power: 0-400.0W 0-1000.0W 0-2000.0W
0-12000W 0-30000W 0-60000W
5. Measurement accuracy: 1% level
attention
1.The meter should use in the indoor, do not use outside door.
2.When measuring voltage or current exceeds the rating, the meter will be destroy.

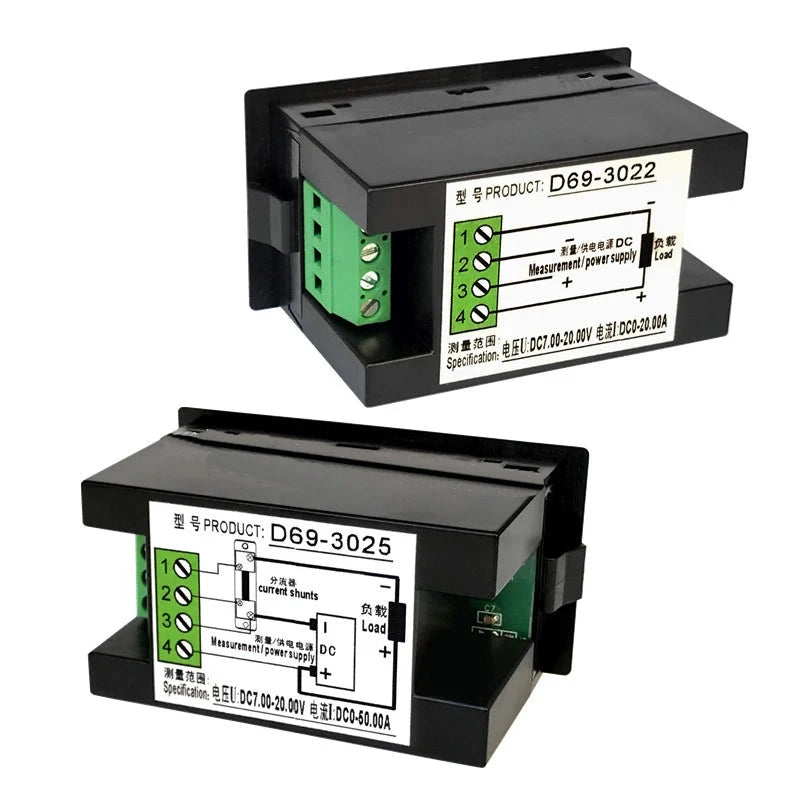

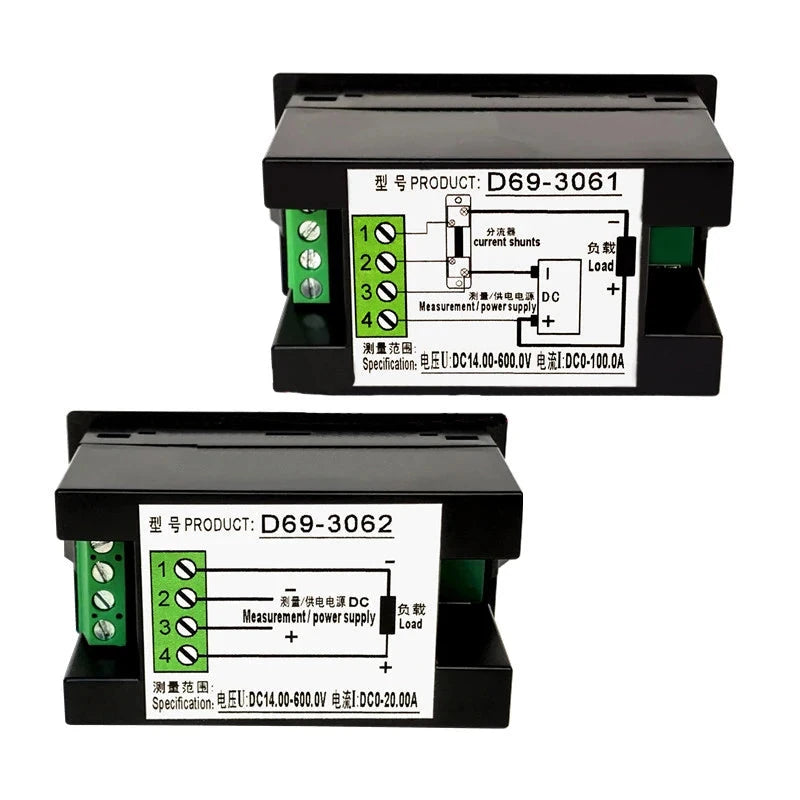

3.You should connect the wire follow the wiring diagram indicate, the meter will destroy with wrong wire connecting.
4.DC current shunt must connect fllow the wiring diagram to the negative of the “mesuring/working voltage”, the meter will destroy with wrong wire connecting.
5.The negative of “mesuring/working voltage” should not connect to the terminal of 3, you must first connect to the DC current shunt, then connect to the terminal of 3 (You must follow the wiring diagram)
6.If you only meaure the voltage, the DC current shunt and the payload is not necessary, you can only connect the positive of “meauring/working voltage” to the terminal of 4 and the negative to the terminal of 3.
Package Included
1 × DC voltmeter
