Description

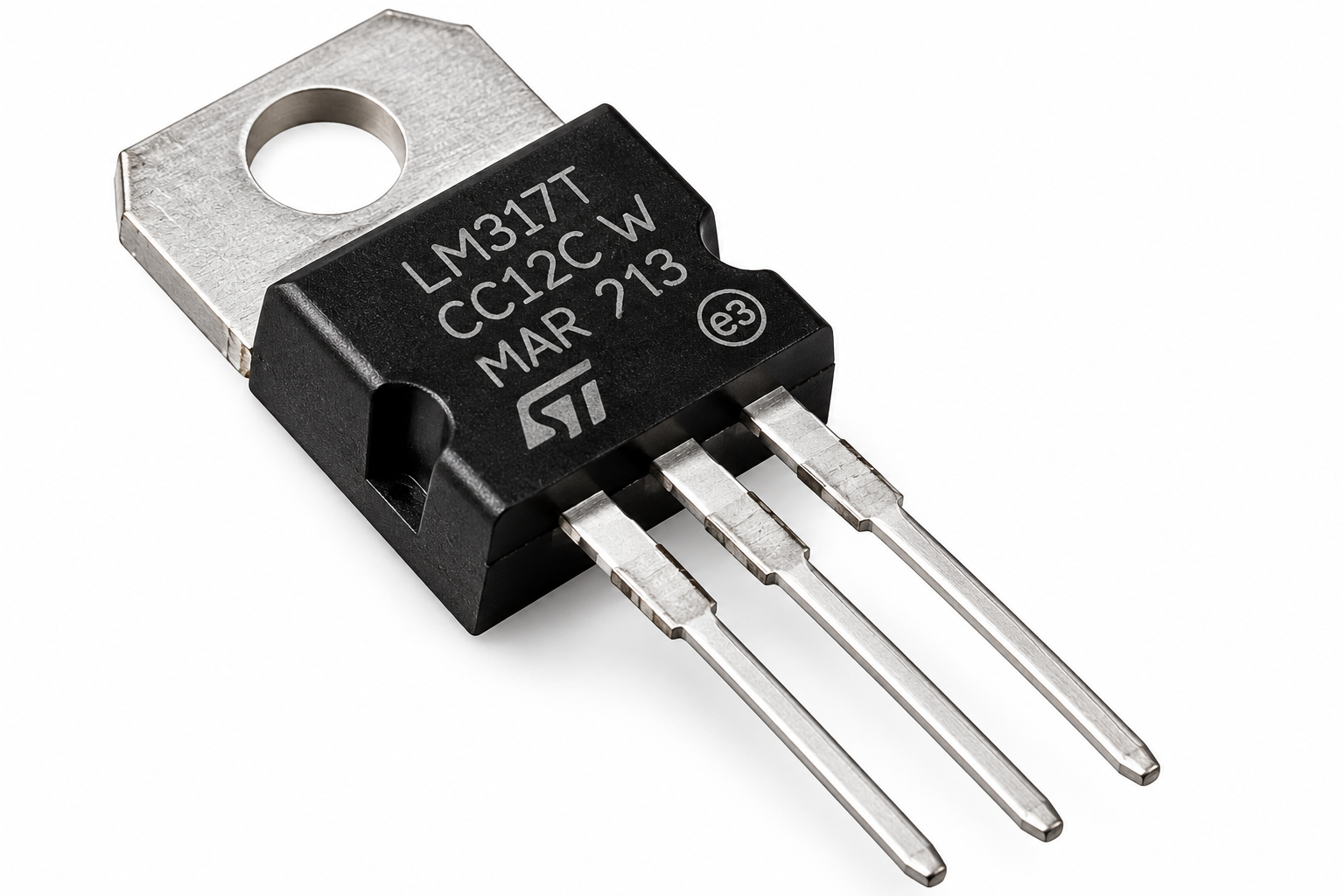

The LM317 Adjustable Voltage Regulator is a versatile three-terminal positive linear regulator IC designed to provide an adjustable and regulated output voltage for electronic circuits. It allows the output voltage to be set from 1.25V to 37V using external resistors, making it useful for a wide range of power supply, electronics repair and DIY applications.

With an output capability of up to 1.5A when properly heatsinked, the LM317 can be used in adjustable power supplies, voltage control circuits, battery-related projects and many other electronic applications. The device also incorporates internal current limiting and thermal overload protection.

The TO-220 package makes the LM317 convenient for PCB mounting and applications where a heatsink may be required for higher power dissipation.

⭐ Key Features

  • Part Number: LM317
  • Type: Adjustable Positive Voltage Regulator
  • Package: TO-220
  • Output Voltage: 1.25V–37V adjustable
  • Maximum Output Current: Up to 1.5A with proper heatsinking
  • Requires external resistors to set output voltage
  • Internal short-circuit current limiting
  • Thermal overload protection
  • Suitable for power supply and voltage regulation circuits
  • Useful for electronics repair and DIY projects

🛠️ Applications

  • Adjustable DC power supplies
  • Voltage regulator circuits
  • Electronics repair
  • DIY electronic projects
  • Battery charging/control circuits
  • Embedded and hobby electronics
  • Power supply projects
  • Voltage control applications

📋 Technical Specifications

Specification Details
IC LM317
Type Adjustable Linear Voltage Regulator
Output Voltage 1.25V–37V
Output Current Up to 1.5A*
Input-Output Differential 3V–40V
Package TO-220
Minimum Load Current 3.5mA typical / 12mA maximum
Protection Current Limiting & Thermal Overload

*Maximum current depends on operating conditions and adequate heatsinking

📦 Package Includes

1 × LM317 Adjustable Voltage Regulator IC
