MPPT SOLAR INVERTER – GALAXY DUAL PV5500+ PRO - SmartEshop.Pk

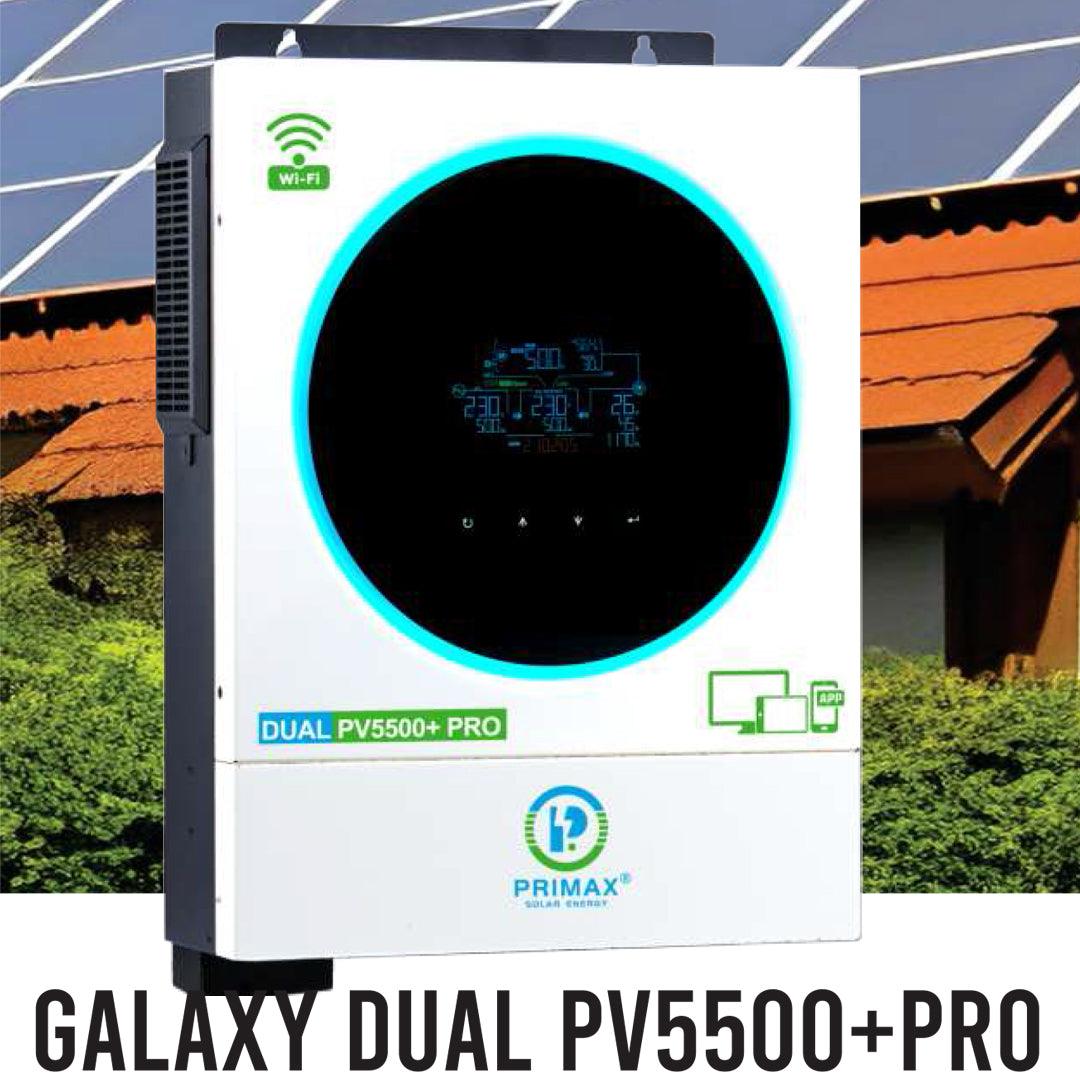

MPPT SOLAR INVERTER – GALAXY DUAL PV5500+ PRO

Availability: In Stock
Product Type: Solar Inverter
Rs.0.00
Rs.0.00
Subtotal: Rs.0.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 1 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

MPPT SOLAR INVERTER – GALAXY DUAL PV5500+ PRO - SmartEshop.Pk

MPPT SOLAR INVERTER – GALAXY DUAL PV5500+ PRO

Rs.0.00

MPPT SOLAR INVERTER – GALAXY DUAL PV5500+ PRO

Rs.0.00

The MPPT Solar Inverter - Galaxy Dual PV5500+ Pro is a top-of-the-line choice for efficient solar energy conversion. With advanced MPPT technology, this inverter allows for maximum power output and improved system performance. Upgrade to the Galaxy Dual PV5500+ Pro for superior solar power optimization.

  • Dual output for smart load management
  • Maximum PV input current 27A
  • Maximum PV input 5500W
  • Wide PV input voltage range 60VDC~450VDC
  • Touchable button with large 4.3″ colored LCD
  • Customizable status LED ring with RGB lights
  • Built-in Wifi for mobile monitoring (Android/iOS App available)
  • Supports USB On-the-Go function
  • Reserved communication port (RS485, CAN-BUS or RS232) for BMS
  • Maximum charging current 120A
  • Battery independent design
  • Battery equalization extends life cycle
  • Built-in anti-dust kit
  • Data log event stored in the inverter
    • Data log event stored in the inverter
    RATED POWER 4000VA/4000W
    INPUT
    Voltage 230VAC
    Selectable Voltage Range 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
    Frequency Range 50Hz/60Hz(Auto Sensing)
    OUTPUT
    AC Voltage Regulation (Batt. Mode) 230VAC+-10%
    Surge Power 8000VA
    Efficiency (Peak) 90% ¬ 93%
    Transfer Time 15ms (For Personal Computers)



    20ms (For Home Appliances)

    Waveform Pure Sine Wave
    BATTERY
    Battery Voltage 24VDC
    Floating Charge Voltage 27VDC
    Overcharge Protection 33VDC
    SOLAR CHARGER & AC CHARGER
    Solar Charger Type MPPT
    Maximum PV Array Open Circuit Voltage 500VDC
    Maximum PV Array Power 5500W
    MPPT Range@ Operating Voltage



    Maximum PV Input Current

    60¬450VDC



    27A

    Maximum Solar Charge Current 120A
    Maximum AC Charge Current 100A
    Maximum Charge Current 120A
    PHYSICAL
    Dimension D*W*H(mm)



    Net Weight (Kgs)

    119 x 313.6 x 457.5



    10

    Communication Interface USB/RS232/RS485/WiFi/Dry-contact
    OPERATING ENVIRONMENT
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    Operating Temperature -10°C to 50°C
    Storage Temperature -10°C to 60°C
