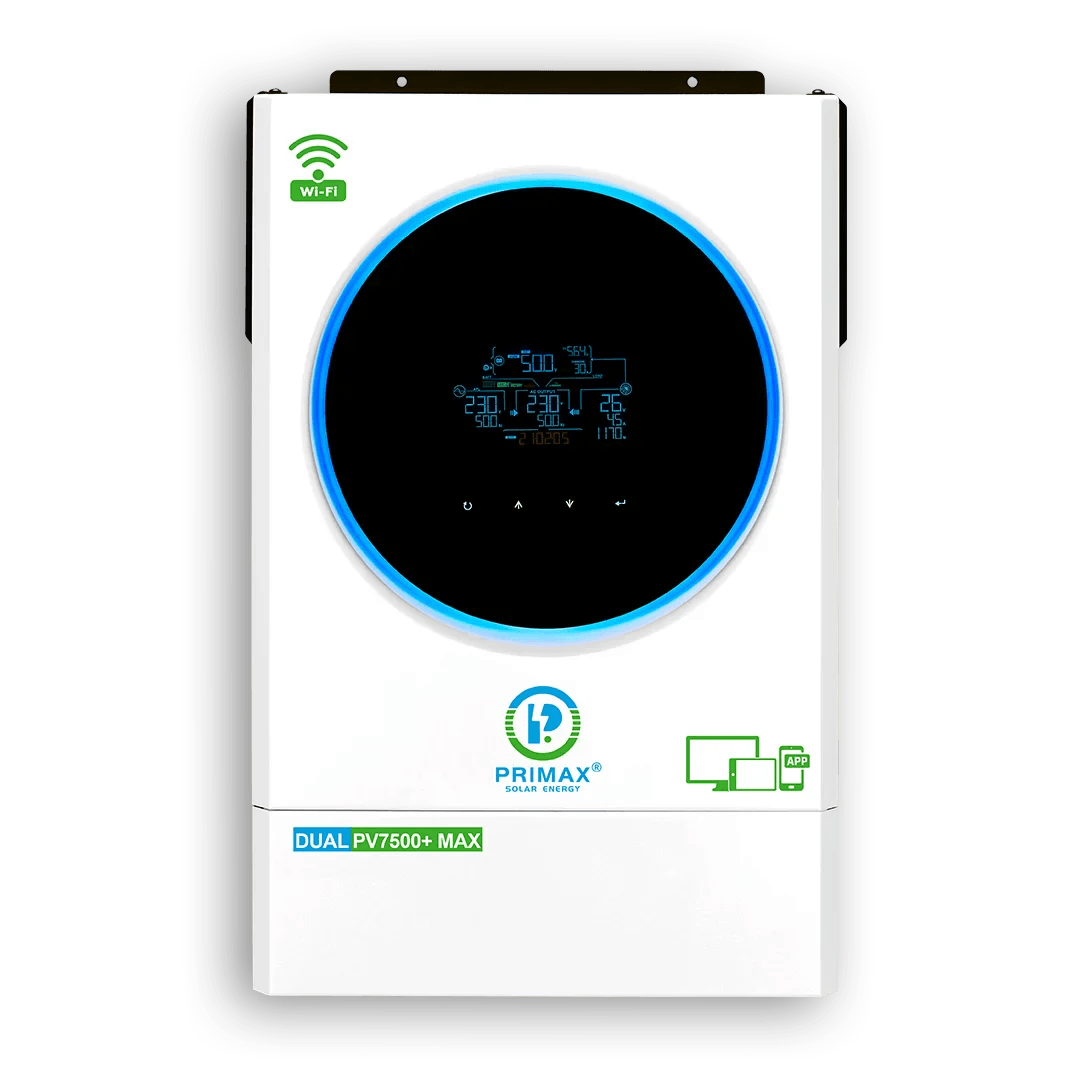

MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX

Availability: In Stock
Product Type: Solar Inverter
Rs.185,000.00
Rs.210,000.00
Rs.185,000.00
Subtotal: Rs.185,000.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 3 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX - SmartEshop.Pk

MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX

Rs.210,000.00 Rs.185,000.00

MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX

Rs.210,000.00 Rs.185,000.00

Product Details

Introducing the MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX, the ultimate solar inverter for maximizing energy output. With dual PV input and advanced MPPT technology, you can expect up to 99.9% efficiency and seamless integration with your solar system. Take advantage of the power of the sun with this top-of-the-line inverter.

  • Feed-in to the grid with storage backup
  • Dual outputs for smart load management
  • Maximum PV input current 27A
  • Maximum PV input 7500W
  • Customizable status LED ring with RGB lights
  • Touchable button with 4.3″ colored LCD
  • Built-in Wi-Fi for mobile monitoring (App is available)
  • Supports USB On-the-Go function
  • Reserved communication port for BMS
  • Maximum charging current 120A
  • Maximum AC output 6000W
  • Parallel operation up to 9 units
  • Built-in anti-dust kit
PHASE 1- Phase In / 1- Phase Out
RATED OUTPUT POWER 6000W
MAXIMUM PV INPUT POWER 7500W
MAXIMUM CHARGING POWER 6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360VDC / 500VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150VDC
MPPT Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 18 ~ 264.4 VAC or 195.5 ~ 253 VAC (Selectable)
Nominal Output Current 26A
Power factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 ~ 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 ~ 280 VAC or 170 ~ 280 VAC
Maximum AC Input Current 40A
PV INPUT (DC)
Maximum DC Voltage 500 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1/27A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure Sinewave
Effieciency (DC to AC) 93%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120 VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1/27A
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 ~ 264.5 VAC or 195.5 ~ 253 VAC (Selectable)
Nominal Output Current 26A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 ~ 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 ~ 280 VAC or 170 ~ 280 VAC
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Effieciency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
Maximum Charge Current 120A
PHYSICAL
Dimension D*W*H(mm) 140x295x468
Net Weight (Kgs) 12
INTERFACE
Parallel Function Yes, 9 Units
Communication Port USB/RS232/RS485/WiFi/Dry-contact
ENVIRONMENT
Humidity 0% to 90% Relative Humidity (Non-Condensing)
Operating Temperature -10¬50C
Storage Temperature -15¬60C
