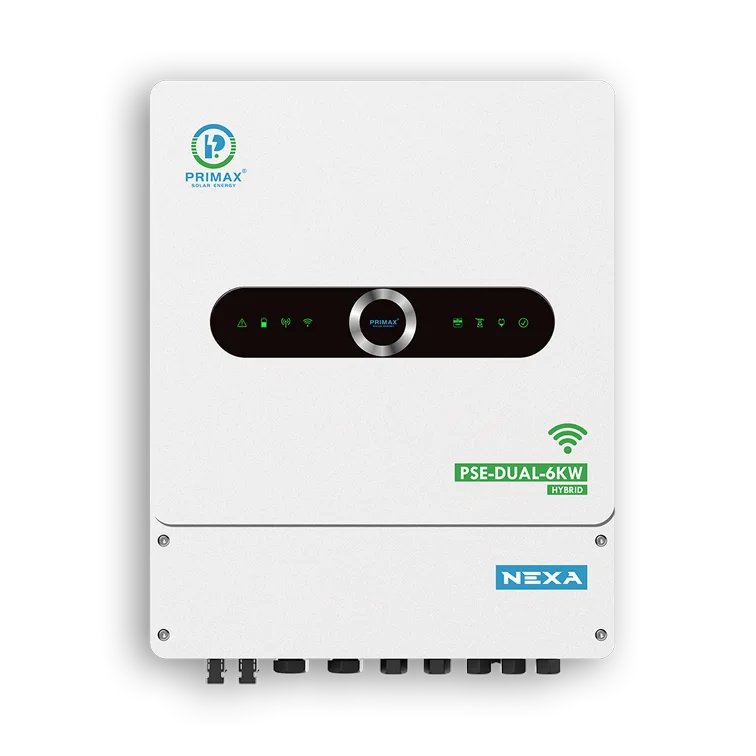

A versatile and efficient hybrid solar inverter built for medium to large-scale solar energy systems. Ideal for residential and commercial use, offering advanced technology and robust performance.
SPECIFICATIONS
Model | PSE-DUAL-6KW |
PV INPUT | |
Max. DC input power [W] | 9000 |
Max. DC input voltage [V] | 500 |
MPPT voltage range [V] | 150-450 |
Starting voltage [V] | 125 |
Max. input current [A] | 18/18 |
Max. short circuit current [A] | 22.5/22.5 |
Number of MPP trackers | 2 |
Strings per MPP tracker | 1 |
AC OUTPUT (GRID) | |
Rated output power [W] | 6000 |
Max. output apparent power [VA] | 6600 |
Rated output voltage [V] | 220/230/240 |
Rated output frequency [Hz] | 50/60 |
Max. output current [A] | 27 |
THDi | <3% |
Output power factor | ~1 (-0.8 leading +0.8 lagging) |
AC OUTPUT (TWO BACKUP) | |
Full Max. output power [W] | 6000 |
Rated output voltage [V] | 220/230 |
Rated output frequency [Hz] | 50/60(±0.2%) |
Back up1 Max. output power ΣΣ | 6000 |
Back up2 Max. output power ΣΣ | 6000 |
Output Power Factor(off grid) | 1 (0.8 leading to 0.8 lagging) |
Output Current Harmonic Distortion | THD 3% (Nonlinear load); THD<1.5% (Linear load) |
Max. output current [A] | 27 |
BATTERY PARAMETERS | |
Battery Type | Lithium or lead acid battery |
Rated battery voltage [V] | 48 |
Voltage range [V] | 44-57 |
Max. charge/discharge current [A] | 120 |
BMS communication | CAN/RS485 |
EFFICIENCY | |
Max. efficiency (PV) | 97.6% |
Max. efficiency(cell) | 94.5% |
European efficiency | 97% |
PROTECTION | |
PV input reverse polarity protection | Yes |
PV insulation resistance detection | Yes |
Residual current detection | Yes |
Output over current protection | Yes |
Output short circuit protection | Yes |
Output over voltage protection | Yes |
OTHERS | |
Operating temperature range [°C] | -25-60 |
Storage temperature range [°C] | -30-65 |
Humidity range | 0-95% |
Operating altitude [m] | ≤4000 |
Communication | RS485/CAN/WiFi/Ethernet/4G |
Noise (db) | <25 |
Size (WXHXD) [mm] | 427*554*198 |
Weight [kg] | 19 |
STANDARD | |
EN 62109-1/2, IEC 62109-1/2, EMC 61000, EN50549, VDE 4105/0124, NRS 097-2-1, IEC61727/62116/61683 |
A reliable and cost-effective solution for medium-scale energy needs, delivering outstanding efficiency and durability.
