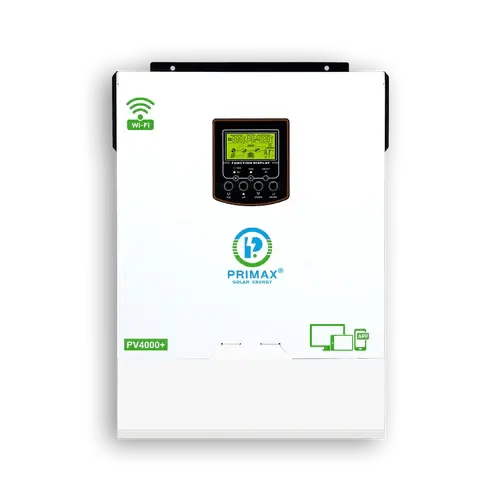

Primax Galaxy PV4000+ Hybrid Solar Inverter 3KW with 4000W MPPT Solar Charge Controller
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Description
Primax Galaxy PV4000+ Hybrid Solar Inverter 3KW with 4000W MPPT Solar Charge Controller
Description
- Pure sine wave solar inverter
- Wide PV input voltage range 60VDC ~ 400VDC
- Maximum PV input 4000W
- Reserved communication port for BMS
- Maximum charging current 100A
- Battery independent design
- Battery equalization function to optimize battery performance and extend life cycle
- Built-in anti-dust kit
- Maximum AC Output 3000W
| RATED POWER | 3000VA/3000W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24V DC |
| Floating Charge Voltage | 27V DC |
| Overcharge Protection | 32V DC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 450V DC |
| Maximum PV Array Power | 4000W |
| MPPT Range@ Operating Voltage | 60¬400VDC |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 800A |
| Maximum Charge Current | 100A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
110*288*390
7.2 |
| Communication Interface | RS232/RS485 |
| OPERATING ENVIRONMENT | |
| Humidity | 0% to 90% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
Primax Galaxy PV4000+ Hybrid Solar Inverter 3KW with 4000W MPPT Solar Charge Controller
