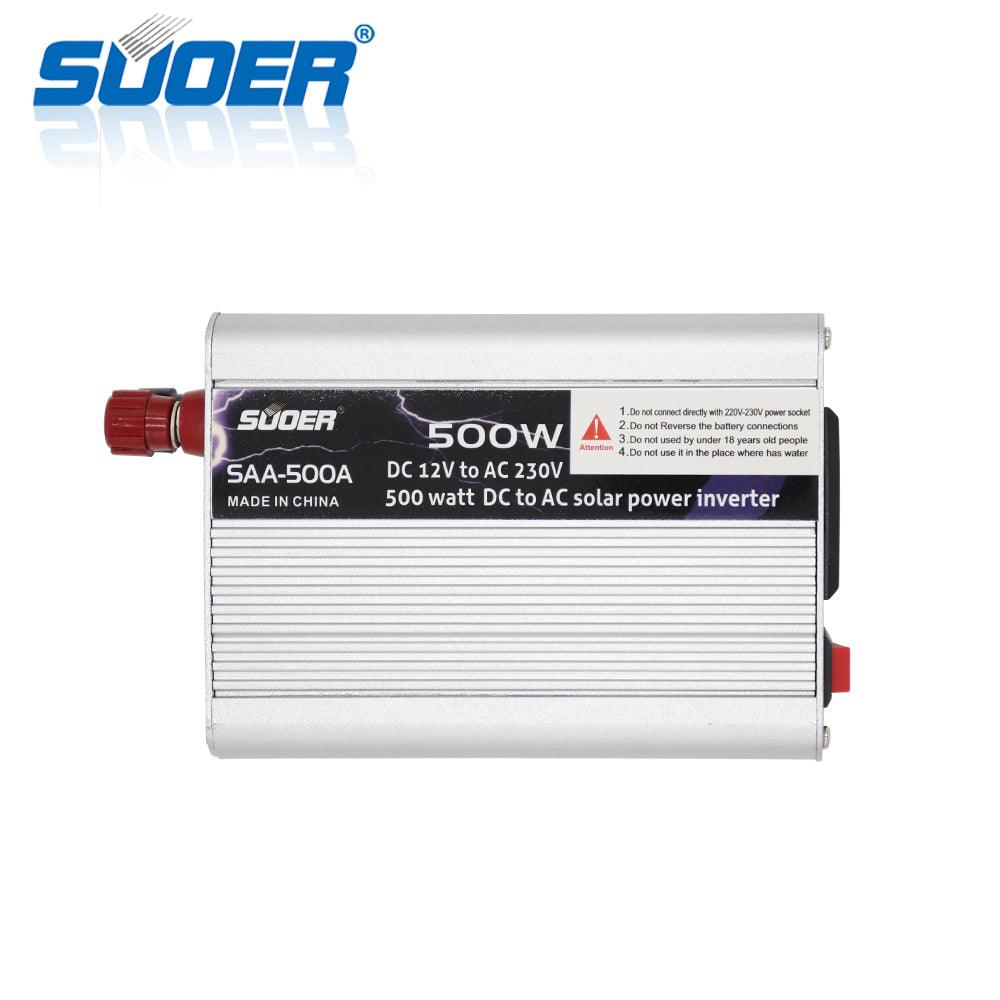

SAA-500A Power Inverter, DC12V to AC 220V Converter 500 W

Specification:
Condition: 100% Brand New
Item Type: Power Inverter
Material: Aluminium Alloy
Color: Silver
Model: SAA-500A
Output Voltage: AC220V
Frequency: 50±2HZ
Waveform: Modified Sine Wave
Low Voltage Shutdown: DC9.2-9.8V
Overvoltage Shutdown: DC15-16V
No-Load Consumption: DC12V Input
Input No-Load Current: <0.5A
Power: 500 W

Instruction
The installation environment should have the following conditions: Not immersed in water or rain, the temperature is between 0°C and 40°C, there is nothing in the upper 5cm of the body shell, and the other end faces are well ventilated. Turn on the transfer switch, the green indicator light is on, indicating that it is working normally. The red indicator light is on, indicating that the converter shuts down due to overvoltage/ Undervoltage/ overload/ over temperature. In many cases, due to the limited output of the car cigarette lighter plug, the normal converter alarms or shuts down. At this time, just start the car or reduce the power consumption to return to normal.
Installation Method:
1. Set the converter switch to the (O F F) position, and then connect the converter to the battery to ensure good contact.
2. Confirm that the power of the electrical appliance used is below the nominal power before using it, connect the 220 V plug of the electrical appliance directly into the 220 V socket at one end of the converter, and ensure the sum of the power of the electrical appliances connected to the two sockets Within the nominal power.

Package List:
1 x Power Inverter
3 x Connecting Cable
1 x Manual
