Description

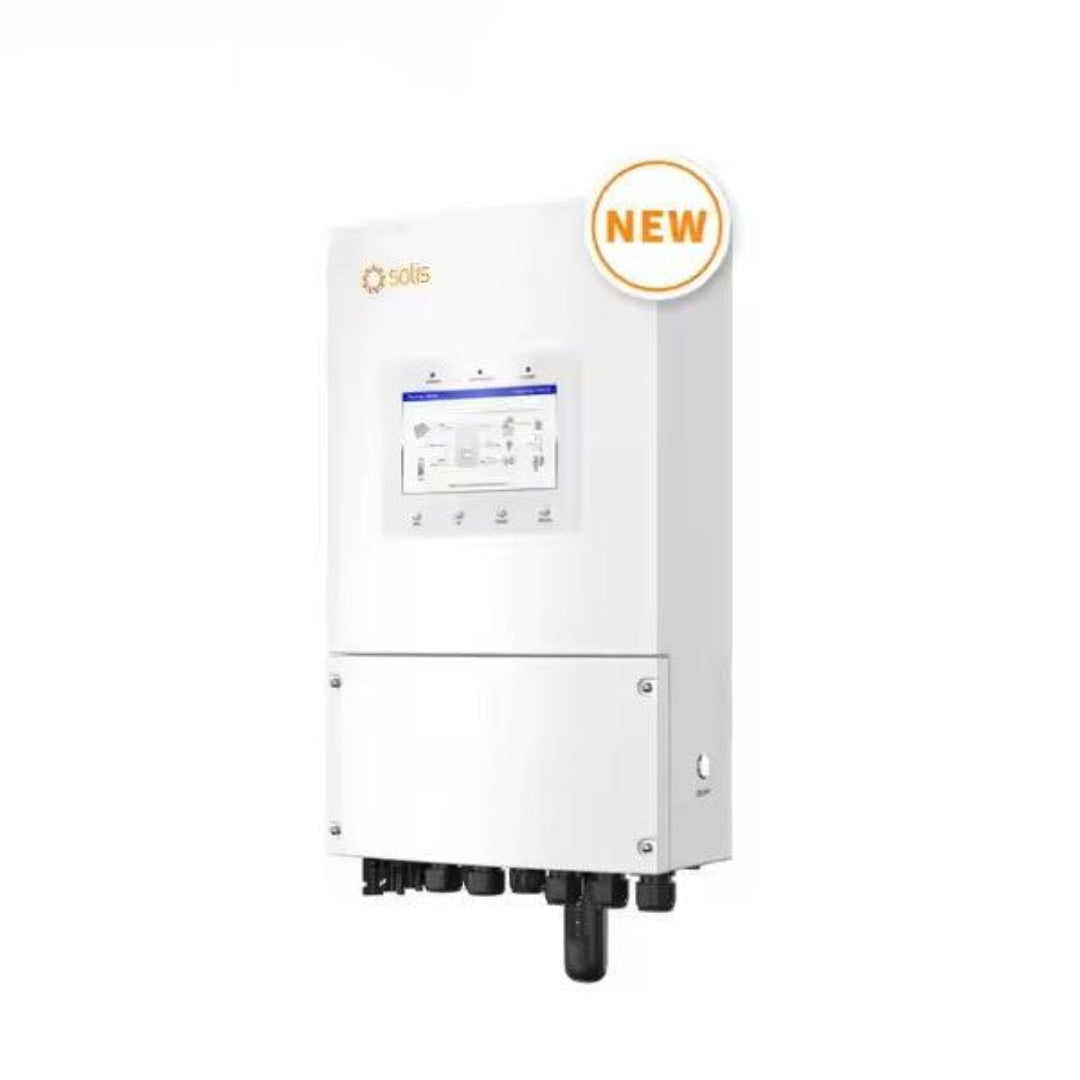

Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter 2025 Model

The Solis S6-EH1P6K-L-PLUS is a powerful and versatile hybrid solar inverter designed to offer seamless integration with both solar systems and generators. With features like automatic UPS switching, customizable charge/discharge settings, and compatibility with both lead-acid and lithium batteries, it ensures optimal performance and flexibility for residential and commercial applications.

Key Features

  • Generator Connectivity: Supports multiple input methods and automatic generator On/Off control, enhancing system flexibility.
  • Automatic UPS Switching: Provides quick 10-second automatic switching with 200% surge power backup, ensuring reliable power during outages.
  • Surge Power Backup Overload Capability: Capable of handling overloads with 200% surge power, making it suitable for high-demand applications.
  • Flexible Connection Options: Supports both single-phase and three-phase connections, with the ability to scale up to a maximum of 36 kW in parallel.
  • High Charge/Discharge Current: Supports up to 135A max charge/discharge current, providing efficient energy storage and management.
  • Customizable Charge/Discharge Settings: Offers 6 customizable charge/discharge time settings to optimize battery usage and performance.
  • Battery Compatibility: Compatible with both lead-acid and lithium batteries, with built-in battery protection features for enhanced safety.
  • Peak Shaving Control: Available in both "self-use" and "generator" mode to help manage energy usage and reduce utility costs.

Specifications

  • Rated Power: 6KW
  • Battery Compatibility: Lead-acid and Lithium
  • Max Charge/Discharge Current: 135A
  • Surge Power Backup: 200% surge capability
  • Generator Mode: Supports automatic generator On/Off control
  • Connection Type: Supports both single-phase and three-phase connections, up to 36 kW in parallel
  • Operating Mode: Self-use and Generator mode with peak shaving control
  • Model Year: 2025

Summary

The Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter is an advanced solution for users looking to optimize their solar energy use with flexibility and high performance. Its ability to seamlessly integrate with both solar panels and generators, along with its support for high charge/discharge currents and multiple battery types, makes it ideal for various energy needs. The inverter's peak shaving and UPS capabilities ensure efficient and reliable power management, providing significant savings and energy independence.

Download PDF

Specifications:

Models 6K
Input DC (PV side)
Recommended max. PV array size 12 kW
Max. usable PV input power 9.6 kW
Max. input voltage 500 V
Rated voltage 330 V
Start-up voltage 90 V
MPPT voltage range 90 - 435 V
Max. input current 16 A / 16 A
Max. short circuit current 20 A / 20 A
MPPT number / Max. input strings number 2 / 2
Battery
Battery type Li-ion / Lead-acid
Battery voltage range 40 - 60 V
Max. charge / discharge power 6 kW
Max. charge / discharge current 135 A
Communication CAN / RS485
Output AC (Grid side)
Rated output power 6 kW
Max. apparent output power 6 kVA
Operation phase L/N/PE
Rated grid voltage 220 V / 230 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 27.3 A / 26.1 A
Max. output current 27.3 A / 26.1 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THD i < 2%
Input AC (Grid side)
Input voltage range 187 - 253 V
Max. input current 40 A
Frequency range 45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power 6 kW
Max. apparent output power 2 times of rated power, 10 s
Back-up switch time < 4 ms
Rated output voltage L/N/PE, 220 V / 230 V
Rated frequency 50 Hz / 60 Hz
Rated output current 27.3 A / 26.1 A
Max. AC passthrough current 40 A
THD v (@linear load) < 2%
Efficiency
Max. efficiency 96.2%
EU efficiency 96.1%
BAT charged by PV / AC max. efficiency 95.3% / 93.9%
BAT discharged to AC max. efficiency 93.8%
Protection
Ground fault monitoring Yes
DC reverse-polarity protection Yes
Integrated AFCI 2.0 Optional
Protection class / Over voltage category I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions (W × H × D) 335 × 560 × 253 mm
Weight 23.5 kg
Topology High frequency isolation (for battery)
Operating ambient temperature range -40 ~ + 60°C
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 3000 m
Grid connection standard NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
Safety / EMC standard IEC/EN 62109-1/-2, EN 61000-6-2/-3
Features
DC connection MC4 plug (PV port) / Terminal Block (BAT port)
AC connection Terminal Block
Display 7.0" LCD display & Bluetooth + APP
Communication RS485, CAN, Optional: Wi-Fi, GPRS, LAN
