Tomzn Din Rail 3 Phase Voltage Relay 3P+N Voltmeter Ammeter Over and Under Voltage Monitor Relays Protector Adjust Current Overvoltage

Name: Tomzn Din Rail 3 Phase Voltage Relay 3P+N Voltmeter Ammeter Over and Under Voltage Monitor Relays Protector Adjust Current Overvoltage
Brand: My Store
SKU: Tomzn 3 Phase TOVPD3-63VA
Price: 7999.0 PKR
Availability: InStock
Rating: 0 (0 reviews)

~~Rs.10,000.00~~ Rs.7,999.00 SAVE 20%

Order On WhatsApp

Ask a Question

SKU: Tomzn 3 Phase TOVPD3-63VA

Availability: In Stock Pre order Out of stock

Categories: Shop Tomzn

Tags: 3 phase tomzn tomzn tomzn 3 phase

Description
Reviews

Description

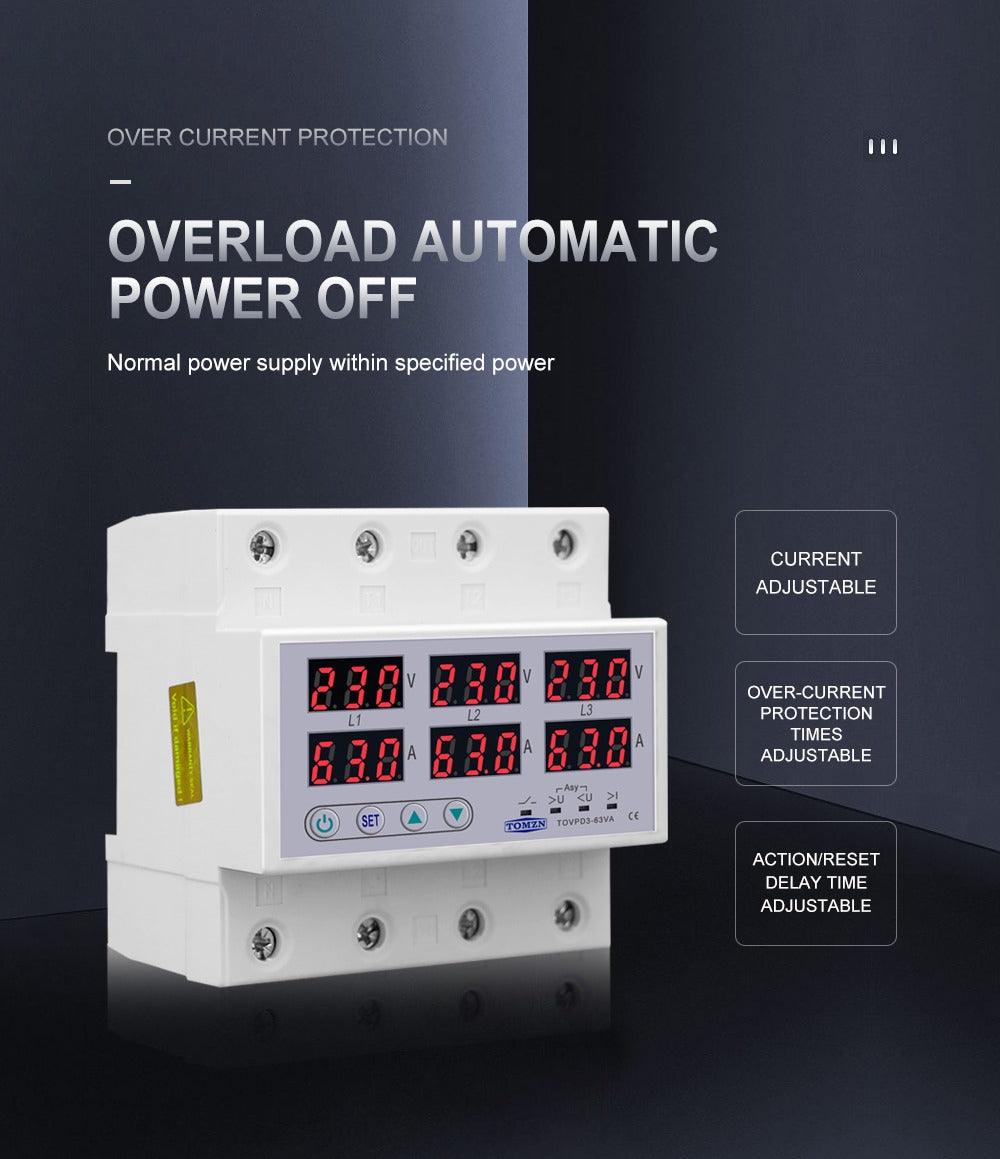

Din Rail 3 Phase Voltage Relay 3P+N Voltmeter Ammeter Over and Under Voltage Monitor Relays Protector Adjust Current Overvoltage

Three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable

1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable
3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable
7. Voltage and current can be manually calibrated

Code	Parameter	Value
P1	Power On Time	1-500S
U1	Over Voltage	230-300V
U2	Recovery Voltage	220-295V
U3	Recovery Time	1-500S
U4	Power Off delay Time	0.1-30S
U5	Under Voltage	140-210V
U6	Recovery Voltage	145-215V
U7	Recovery Time	1-500S
U8	Power Off delay Time	0.1-30S
U9	Voltage Deviation	-9.5 to 9.5%
U10	Asymmetry	20-99V
U11	Phase squence protect	on/off
C1	Over Current	3-63A
C2	Recovery Time	1-500S
C3	Power Off delay Time	0.1-30S
C4	Current Deviation	-9.5 to 9.5%
C5	Continues Over Current Times	1-20 off
