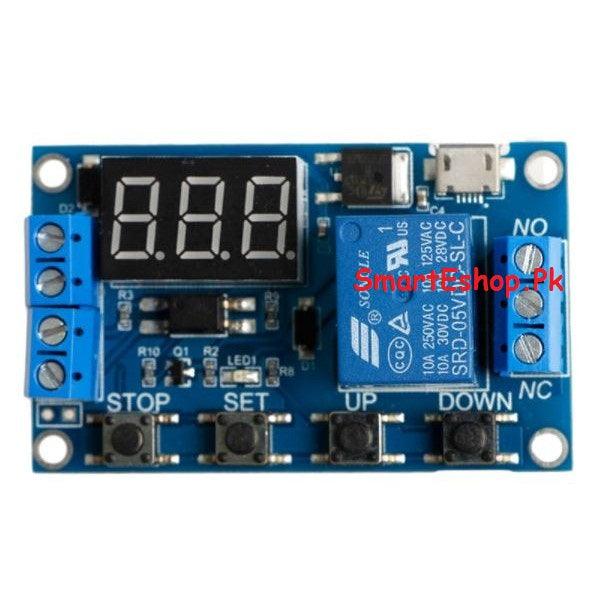

WS16 DC 6-30V Support Micro USB 5V LED Display Automation Cycle Delay Timer Control Off Switch Delay Time Relay 6V 9V 12V 24V

Availability: In Stock
Rs.599.00
Rs.600.00
Rs.599.00
Subtotal: Rs.599.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 4 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

WS16 DC 6-30V Support Micro USB 5V LED Display Automation Cycle Delay Timer Control Off Switch Delay Time Relay 6V 9V 12V 24V - SmartEshop.Pk

WS16 DC 6-30V Support Micro USB 5V LED Display Automation Cycle Delay Timer Control Off Switch Delay Time Relay 6V 9V 12V 24V

Rs.600.00 Rs.599.00

WS16 DC 6-30V Support Micro USB 5V LED Display Automation Cycle Delay Timer Control Off Switch Delay Time Relay 6V 9V 12V 24V

Rs.600.00 Rs.599.00

Highlights:



Wide voltage power supply (6 ~ 30V), supports microUSB 5.0V power supply, easy to use;

The interface is clear and simple, powerful, easy to understand, meet almost all your needs;

The emergency stop function (“STOP” key);With reverse polarity protection, reverse polarity will not burn the product.

Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up;

You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved;

After the module is powered down, all parameter settings are not lost.





Product parameters:



1: Operating voltage: 6--30V, support microUSB 5.0V power supply

2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground).

3: Output capability: You can control the DC 30VDC 5A or  220VAC 5A device.

4: Quiescent Current: 20mA; Operating Current: 50mA

5: life: more than 10 million times; Working temperature: -40-85 ; Size:

6: with optocoupler isolation, enhanced anti-jamming capability, industrial grade board.

Special Note: The relay outputs are passive contact, just a switch.

Package:

1 x  Micro USB 5V LED Automation Delay Timer Control Switch Relay Module Display
