XL6019 (XL6009 upgrade) Automatic step-up step-down Dc-Dc Adjustable Converter Power Supply Module 20W 5-32V to 1.3-35V (Step Up Black)
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
Description
Vin: Input voltage

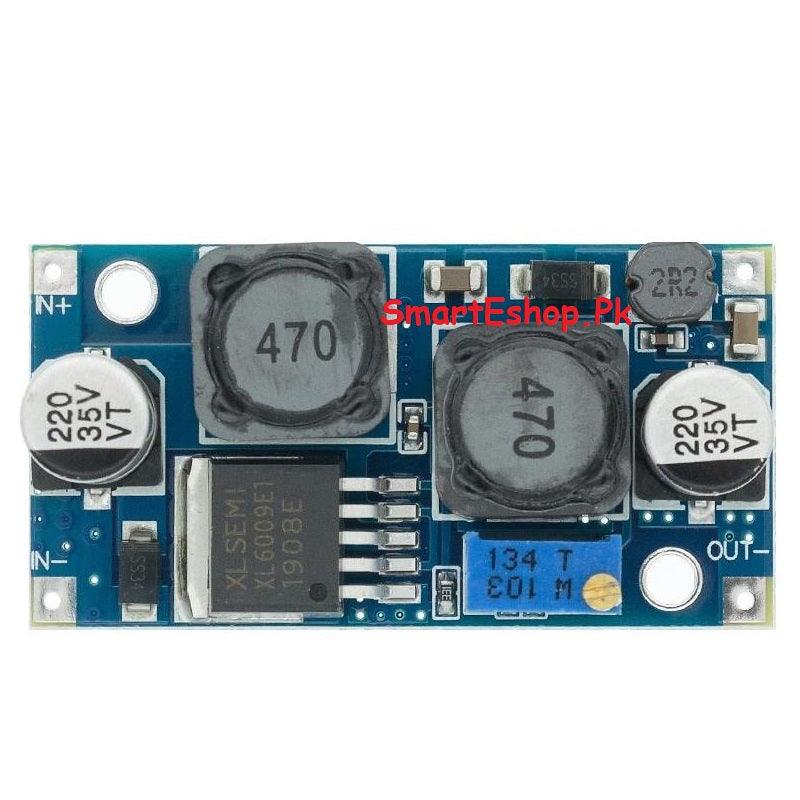

XL6009 is a high-performance 4A switch current boost (BOOST) module. The module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, far more than the first generation of technology performance LM2577. The XL6009 boost module features lower Cost and superior performance, and the LM2577 module is about to be eliminated.
https://youtu.be/nt5b0j37StA
● wide input voltage 3V ~ 32V, the best operating voltage range is 5 ~ 32V;
● Wide output voltage 5V ~ 35V;
● Built-in 4A high efficiency MOSFET switch, the efficiency of up to 94%; (LM2577 current of only 3A)
● high switching frequency of 400KHz, you can use a small capacity of the filter capacitor that can buy very good results, smaller ripple, smaller. (LM2577 frequency is only 50KHz)
Technical Parameters:
Model specifications |
XL6009 boost module |
Module properties |
Non-isolated Boost (BOOST) |
Rectification method |
Non - synchronous rectification |
Input range |
3V to 32V |
Output range |
5V ~ 35V |
Input Current |
4A (maximum), no load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the larger the no - load current. |
Conversion efficiency |
<94% (the greater the pressure, the lower the efficiency) (the = "" greater = "" the = "" (the="" greater="" the="" pressure,="" the="" lower="" the="" efficiency)="" (the="" greater="" the=""> |
Switching frequency |
400KHz |
Output ripple |
50mV (the higher the voltage, the greater the current, the greater the ripple) |
Load regulation |
± 0.5% |
Voltage regulation rate |
± 0.5% |
Operating temperature |
-40 ° ~ +85 ° |
Dimensions |
43mm * 21mm * 14mm (L * W * H) |
IN + Input Positive IN- Input Negative!
OUT + Output Positive OUT- Output Negative
Test Comparison Example Reference:
Input 5V output 12V 0.8A 9.6W
Input 7.4V output 12V 1.5A 18W
Input 12V output 15V 2A 30W
Input 12V output 16V 2A 32W
Input 12V output 18V 1.6A 28.8W
Input 12V output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W
Input 3V output 12V 0.4A 4.8W
Vin * Iin * Efficiency = Vout * Iout
Vin: Input voltage
Iin: Input current
Vout: Output voltage
Iout: Output current
XL6019 (XL6009 upgrade) Automatic step-up step-down Dc-Dc Adjustable Converter Power Supply Module 20W 5-32V to 1.3-35V (Step Up Black)
