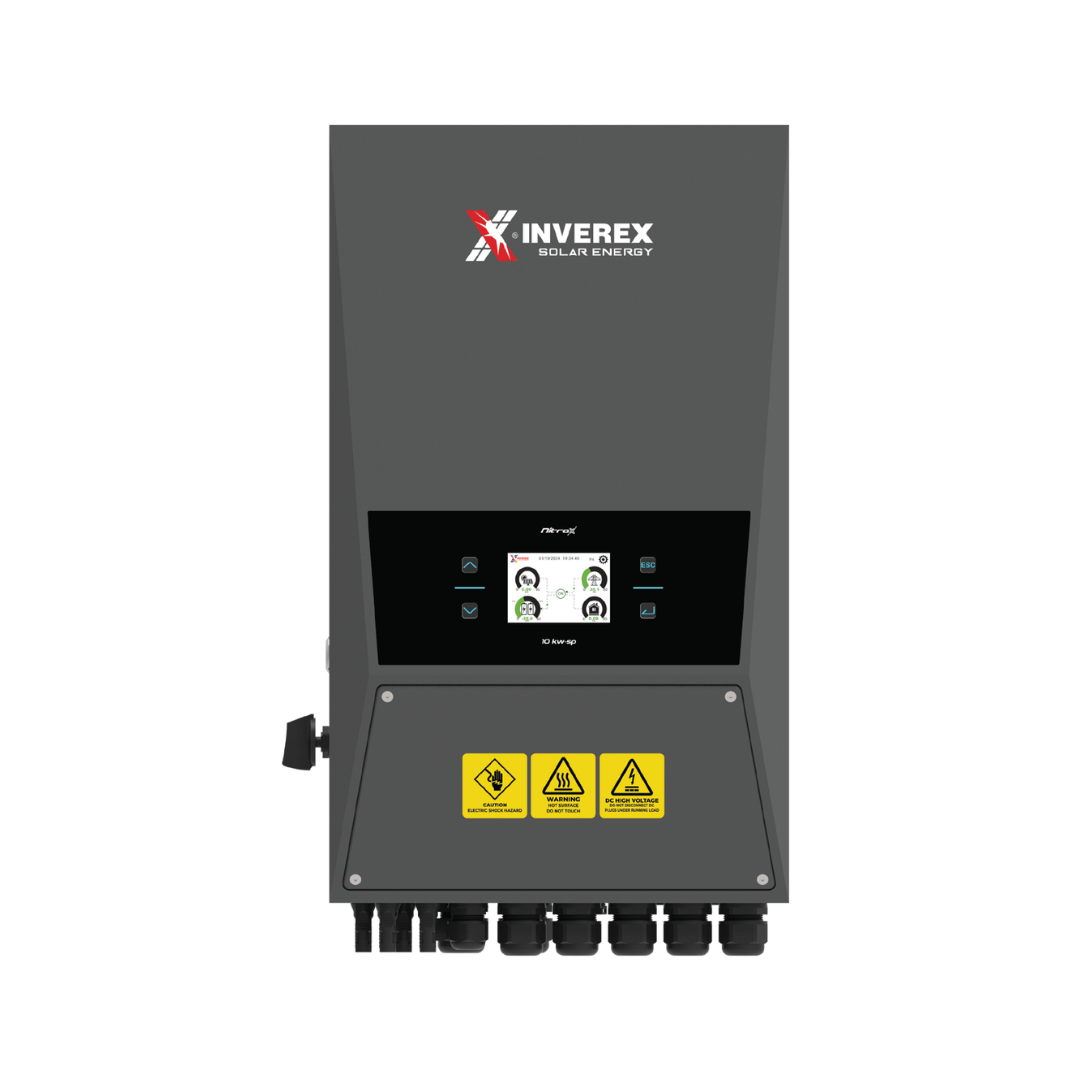

The NITROX HYBRID 10KW SP-5G is a high-performance hybrid solar inverter featuring advanced MPPT technology and smart energy management. It supports both lithium-ion and lead-acid batteries and can handle a maximum PV input power of 16,000W. Designed for both off-grid and on-grid applications, this inverter is an excellent choice for residential and industrial use.
The NITROX HYBRID 10KW SP-5G is a reliable and smart energy solution, ideal for homes, offices, and industrial setups. Its hybrid design and high efficiency ensure energy independence and cost savings.
Category | Specifications |
---|---|
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range (V) | 40-60 |
Max. Charging Current (A) | 210 |
Max. Discharging Current (A) | 210 |
Charging Strategy for Li-ion Battery | Self-adaption to BMS |
Number of Battery Input | 1 |
Max. PV Input Power (W) | 16000 |
Max. PV Input Voltage (V) | 500 |
Start-up Voltage (V) | 125 |
MPPT Voltage Range (V) | 150-425 |
Rated PV Input Voltage (V) | 370 |
Max. Operating PV Input Current (A) | 32+32 |
Max. Input Short-Circuit Current (A) | 48+48 |
Rated AC Input/output Active Power (W) | 10000 |
Max. AC Input/output Apparent Power (VA) | 11000 |
Rated AC Input/output Current (A) | 50/47.9 |
Max. AC Input/output Current (A) | 45.5/43.5 |
Max. Continuous AC Passthrough (grid to load) (A) | 32+32 |
Peak Power (off-grid) (W) | 2 times of rated power, 10s |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
Max. Efficiency | 97.6% |
Euro Efficiency | 96.5% |
MPPT Efficiency | >99% |
Total Current Harmonic Distortion (THDi) | <3% (of nominal power) |
DC Injection Current | <0.5% In |
Surge Protection Level | TYPE II (DC), TYPE II (AC) |
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, etc. |
Operating Temperature (°C) | -40 to +60, >45°C derating |
Permissible Ambient Humidity | 0-100% |
Permissible Altitude | 2000m |
Noise (dB) | <30 |
Ingress Protection (IP) Rating | IP 65 |
Inverter Topology | Non-Isolated |
Over Voltage Category | OVC II (DC), OVC III (AC) |
Cabinet Size (W x H x D mm) | 343×580×258 (Excluding Connectors and Brackets) |
Cooling Type | Intelligent Air Cooling |
Weight (kg) | 25.2 |
Warranty | 5 Years (depends on installation site) |
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
Communication Interface | RS485/RS232/CAN |
Grid Connection Form | L+N+PE |
Rated Input/output Voltage/Range (V) | 220/230 (0.85Un-1.1Un) |
Rated Input/output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 |
