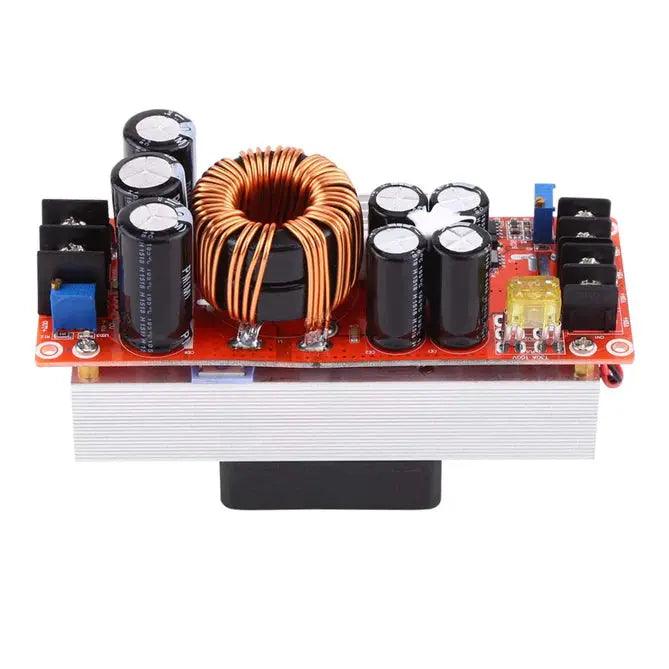

SZ-BT07CCCV-D1 1500W 30A DC-DC Boost Converter Step-up Power Supply Module In 10~60V Out 12~90V 150KHz 130 x 84 x 52mm

Availability: In Stock
Rs.4,499.00
Rs.8,000.00
Rs.4,499.00
Subtotal: Rs.4,499.00
WhatsApp Icon Click Order On WhatsApp
Hurry up! only 8 left
10 customers are viewing this product

Built And Shipped Within 5 - 7 Bussiness Days

SZ-BT07CCCV-D1 1500W 30A DC-DC Boost Converter Step-up Power Supply Module In 10~60V Out 12~90V 150KHz 130 x 84 x 52mm - SmartEshop.Pk

SZ-BT07CCCV-D1 1500W 30A DC-DC Boost Converter Step-up Power Supply Module In 10~60V Out 12~90V 150KHz 130 x 84 x 52mm

Rs.8,000.00 Rs.4,499.00

SZ-BT07CCCV-D1 1500W 30A DC-DC Boost Converter Step-up Power Supply Module In 10~60V Out 12~90V 150KHz 130 x 84 x 52mm

Rs.8,000.00 Rs.4,499.00

SZ-BT07CCCV-D1 1500W 30A DC-DC Boost Converter Step-up Power Supply Module In 10~60V Out 12~90V 150KHz 130 x 84 x 52mm

Description:
Specifications:Type: Non-isolated step-up module (BOOST)Input Voltage: DC10V to 60VMax. Input Current: 30A(input voltage 10V to 30V)                            25A(input voltage 31V to 60V)Quiescent Current: 15mA(will increase when convert 12V to 20V)Output Voltage: 12V to 90V (adjustable, default is 19V)Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)Constant Current Range: 0.8A to 20A(+/-0.3A)Reverse Input Protection: Yes (150A MOS)Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)Operating Temperature: - 40℃ to +85 ℃(if temperature is too high, please enhance heat dissipation)Frequency: 150KHzConversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)Input Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)Short Circuit Protection: Yes(input 30A fuse)Wiring Method: Terminals(please use large current copper wire)Max. Output Power = Input Voltage*Max Current (If input 12V, the max output power=12V*30A = 360W)Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"Package Includes:1 x Module

Key Features:
• 【DOUBLE-LAYER RUST MAGNETS】:Our 1500W 30A DC-DC boost converter use double-layer rust magnets to wind 1.2mm copper wire, with input overcurrent protection, short circuit protection, input reverse connection protection and other functions.
• 【BETTER DISSIPATE HEAT】:The thickened radiator and intelligent temperature control cooling fan can better dissipate heat and maintain high performance and high efficiency.
• 【REVERSE INPUT PROTECTION】:Our 1500W 30A DC-DC boost converter support reverse input protection through mos, so there is no need to worry about input line errors and power supply burnout.
